1.5.4.3.4.3 Interference with magnetic fields
Please consider the placement of the servo drive carefully when designing the motion control application. It
has become evident that the motor’s magnetic field has an impact on the drive’s performance.

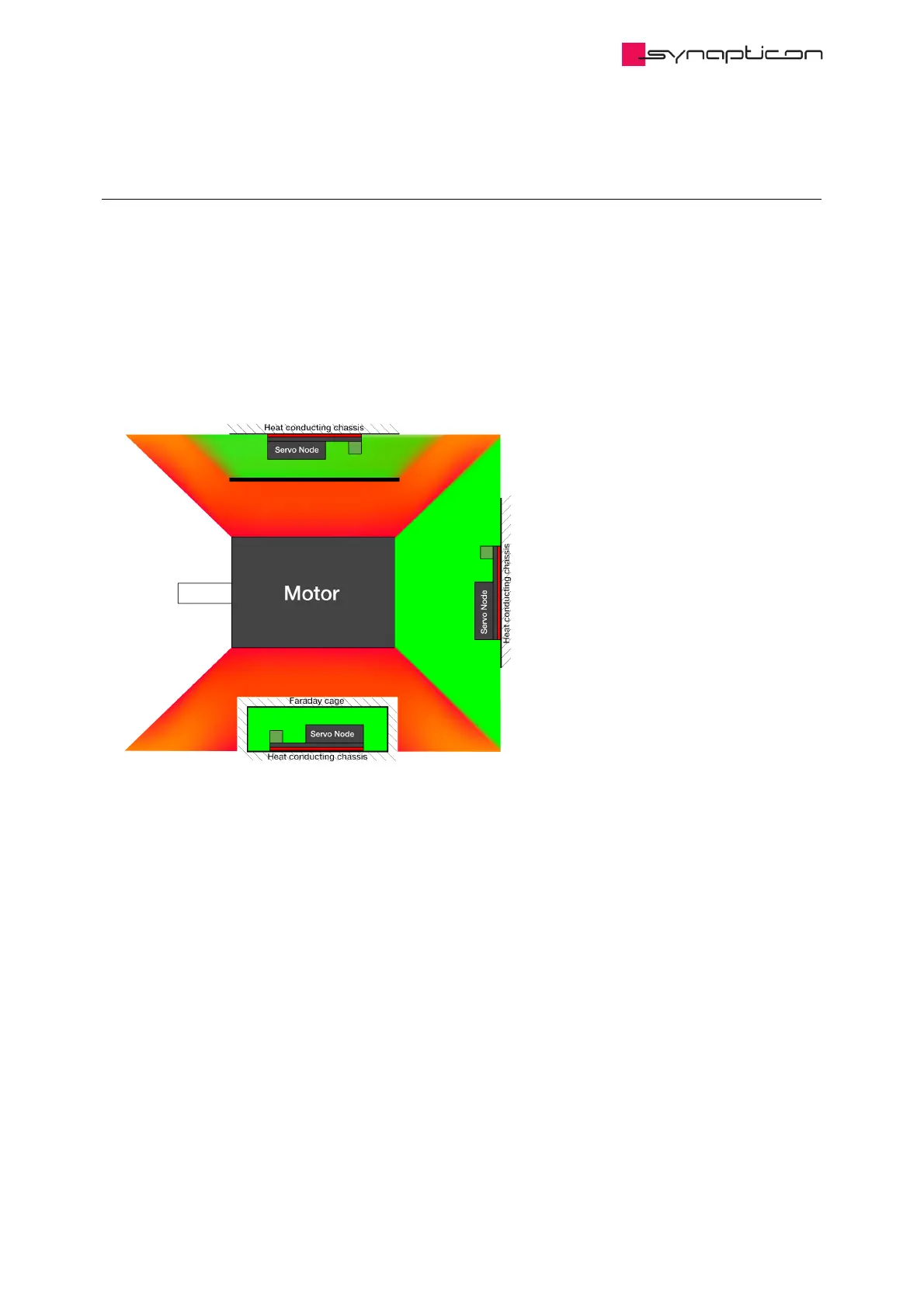

These are the preferred arrangements:
1. At any position but shielded with a Faraday’s cage
2. Behind the motor
3. Beside the motor but shielded from the motor’s magnetic field with a plate
