1.5.1.2.1.4 Temperature sensor

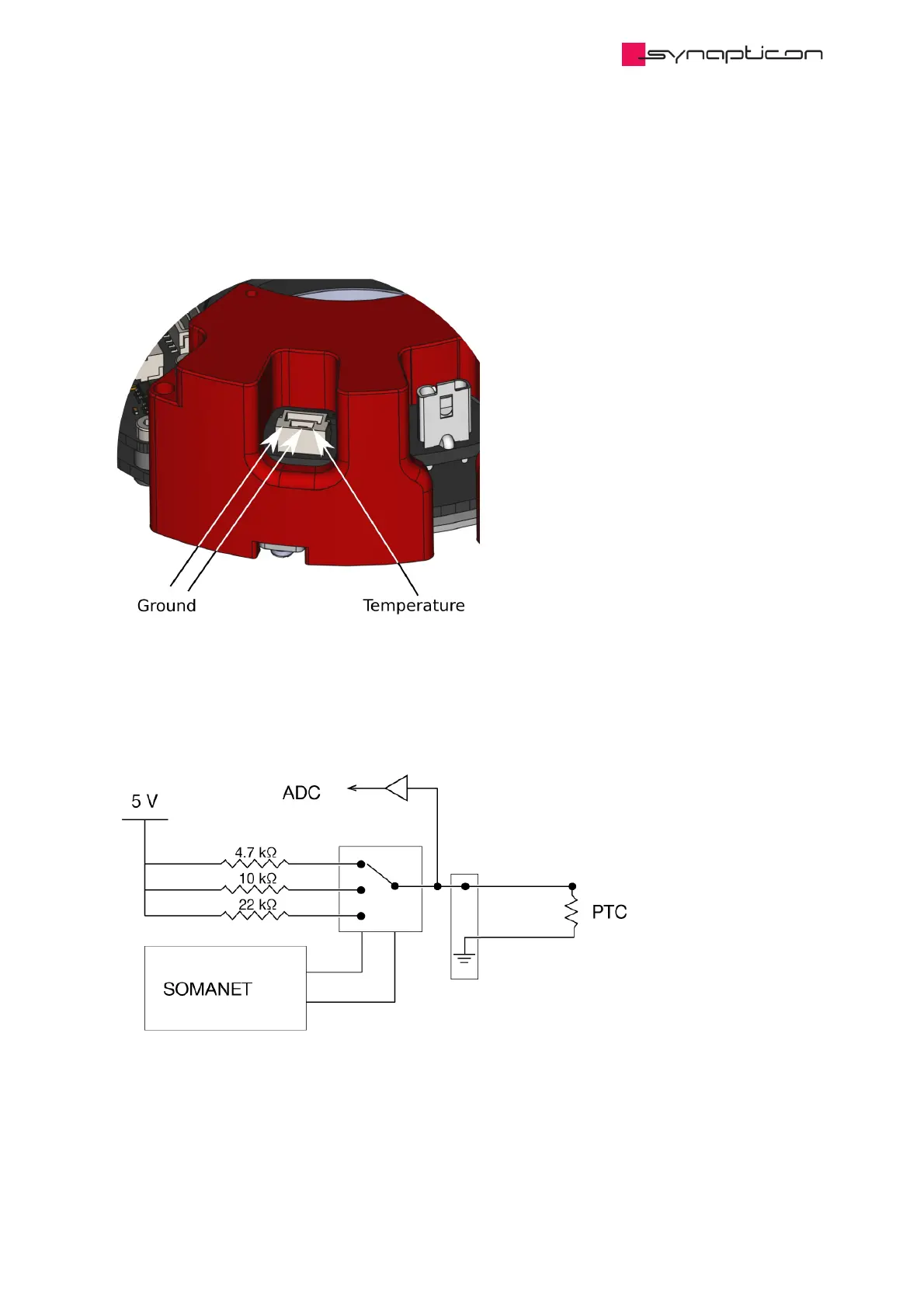

You can add a temperature sensor to your SOMANET Circulo.
Depending on the type of temperature sensor, different resistors in the servo drive need to be activated. This
is done internally with a multiplexer. The desired value can be selected via software through object 0x2038
subindex 3.
Details are described in Analog Input Scaling.
