1.5.4.3.3 Grounding and connecting a brake
Please make sure you ground the board properly.

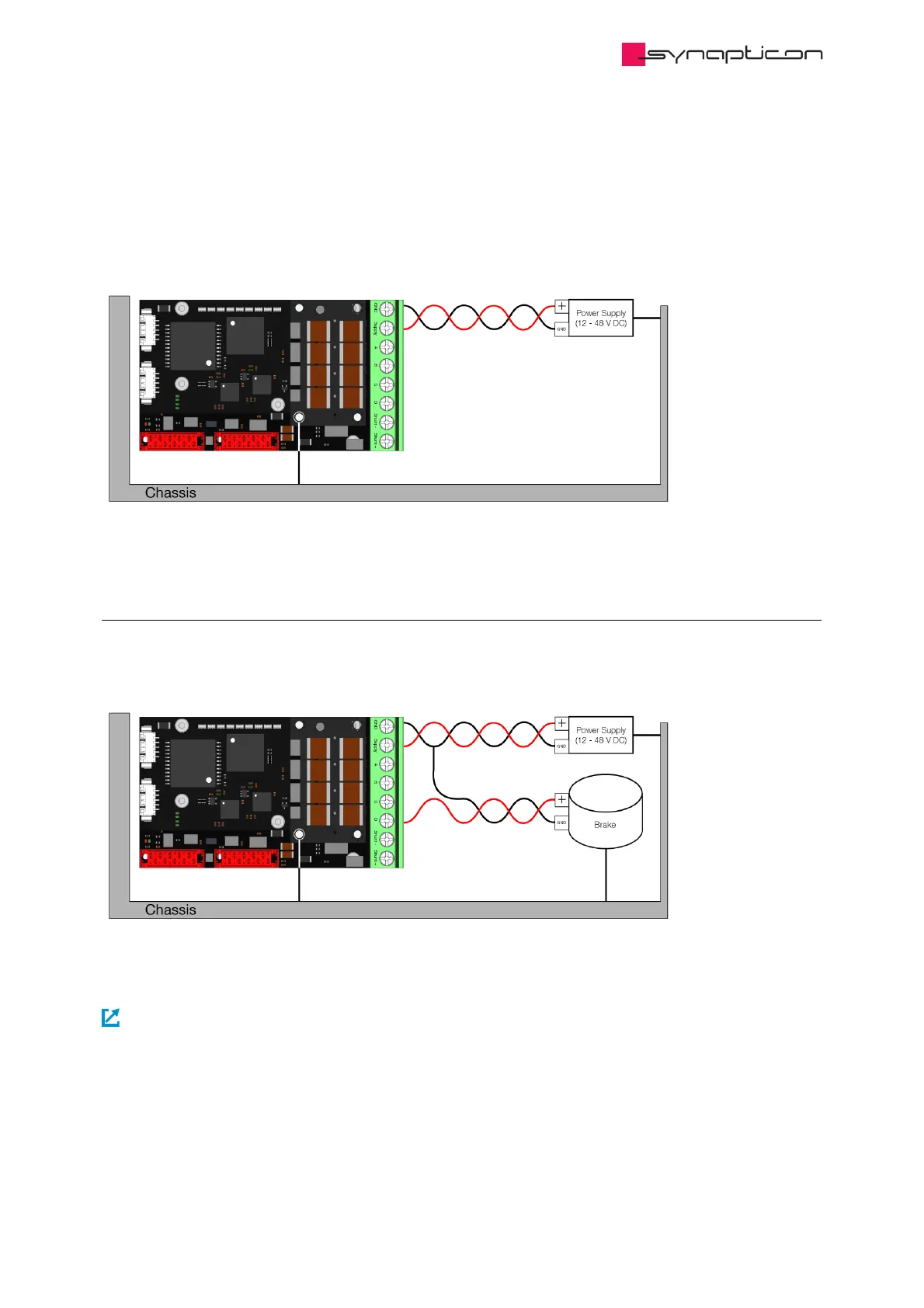

Your configuration will look like this:
1.5.4.3.3.1 Connecting a Brake
If your system has an attached brake, please connect the brake cables to Phase D and Ground. These two
threads should be twisted together or at least be paired to have a minimum area between them.
For mounting please refer to our mounting instructions:
