SYNAPTICON SOMANET Circulo 7 - Pinouts; Connector Details and Mating Parts

1.4.3.3 Pinouts
1.4.3.4 Connector details and mating parts
J1 Conector
Manufacturer JST
Part number SM08B-GHS-TB(LF)(SN)
Conductor cross section AWG min. 30
Conductor cross section AWG max. 26
Mating part for Housing GHR-08V-S
Crimping Contact SSHL-002T-P0.2

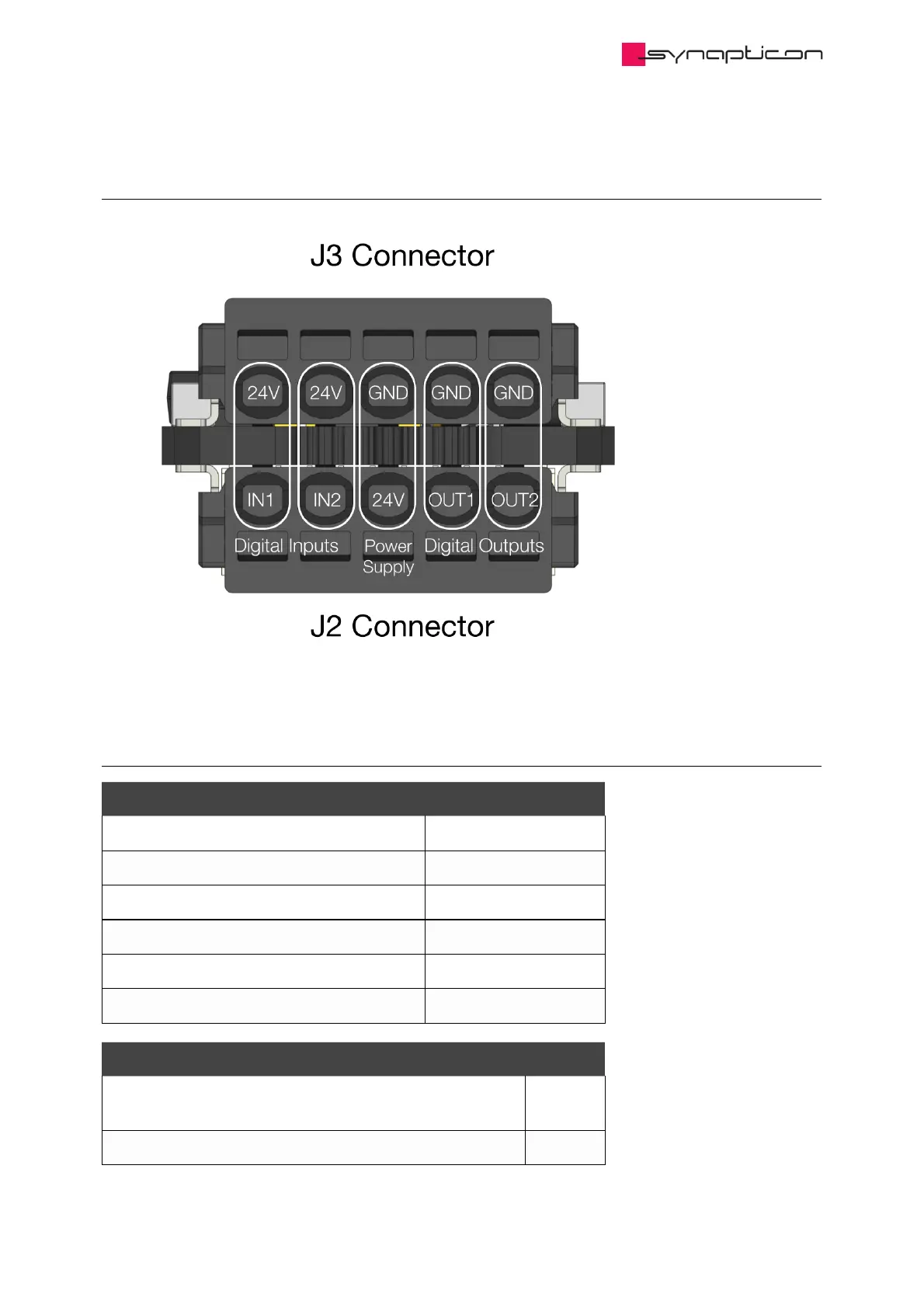

J2 and J3 Connectors
Manufacturer Phoenix
Contact
Part number 1771059
