Important

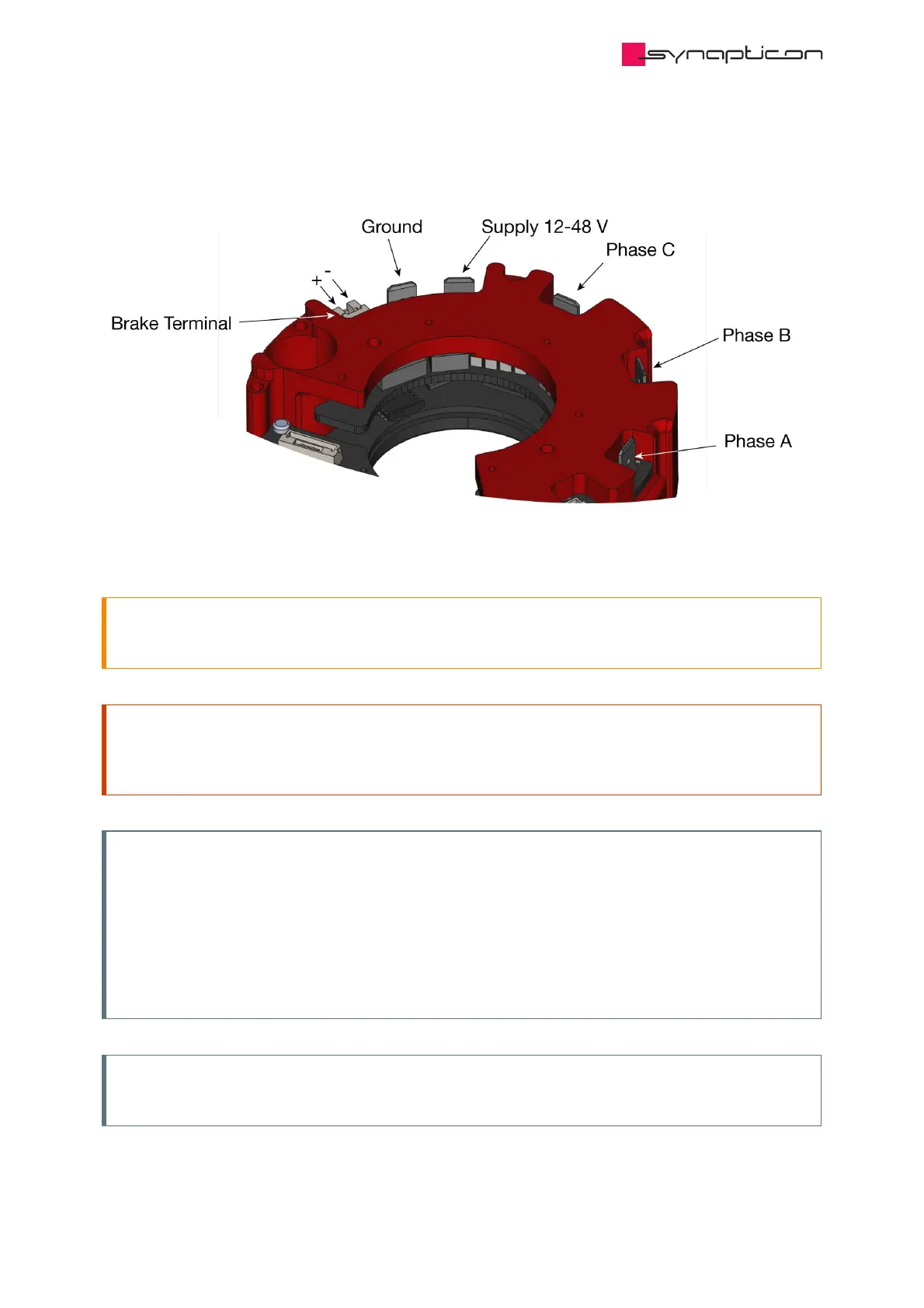

The motor and power cables must be twisted for EMC reasons.
Attention
No reverse polarity protection! Always ensure that the power cables are connected correctly, otherwise
the Drive may be damaged beyond repair!
Note
SOMANET servo drives are densely packed with high-performance components. Even at idle/torque
off, several components such as power supplies, cause the servo drive to get warm, especially when it’s
not connected to any heat conducting structure. The servo drives’ power stages and control algorithms
were optimized for efficiency at high power output and actually make them one of the most efficient
servo drives available. The heat generation is not linear, which makes it actually more noticable at idle
or low power. Please ensure by design of your mounting situation that the heat interface is connected
to sufficient structure to appropriately dissipate generated heat.
Note
Use a protected extra-low voltage (PELV) power supply.
