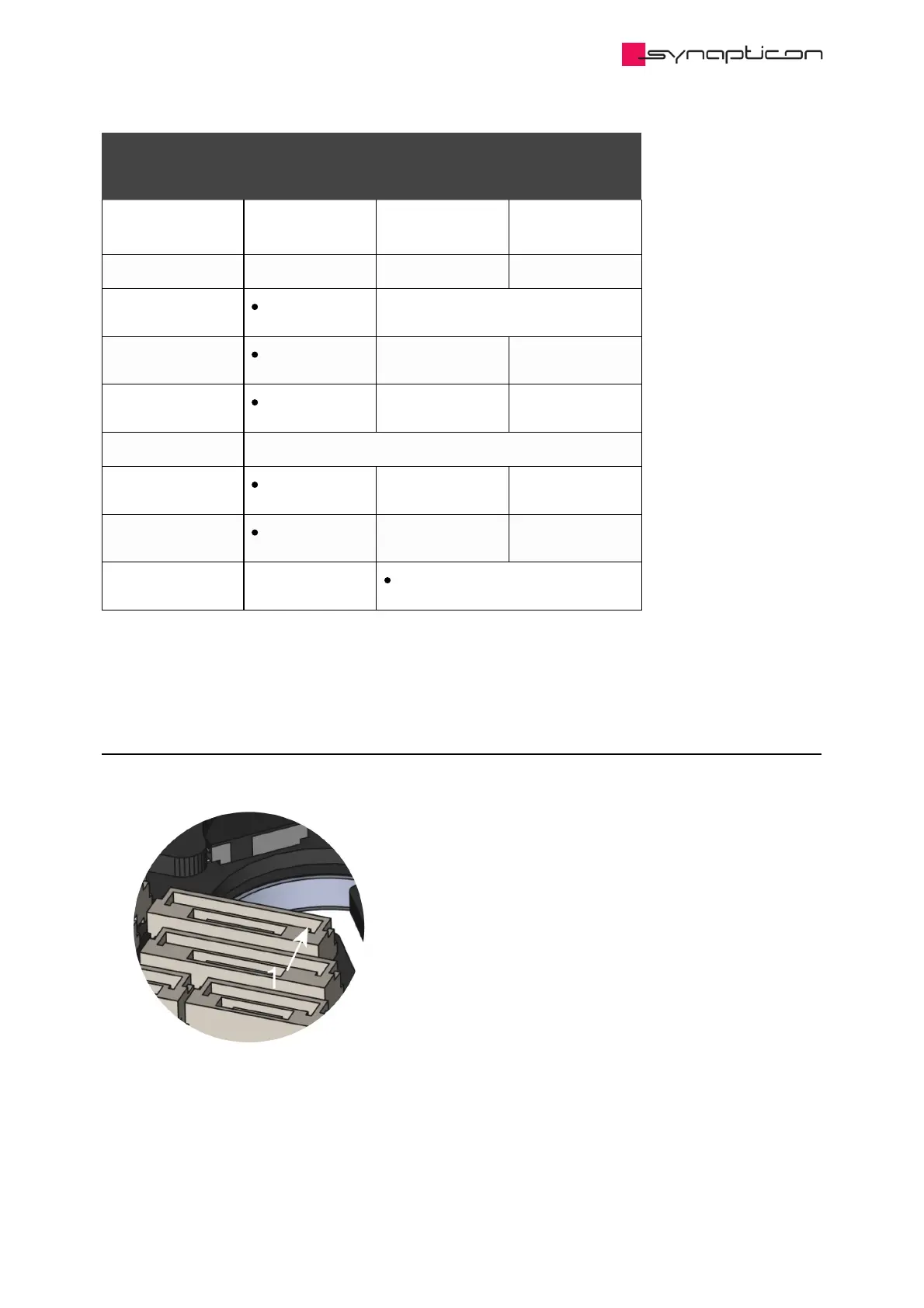

SYNAPTICON SOMANET Circulo 7 - Page 327

Protocol/Function Multi turn
battery supply
BiSS (Diff.) SSI (Diff.)
Encoder Type Integrated
Encoder 1
External Encoder
1
External Encoder
1
Pin # Config. # 1 Config. # 2 Config. # 3
1 5 V
2 MA- Clock-
3 MA+ Clock+
4 Ground
5 SLO- Data-
6 SLO+ Data+
7 V_BAT
1.5.2.2.1.2.3.2 External Encoder 2
