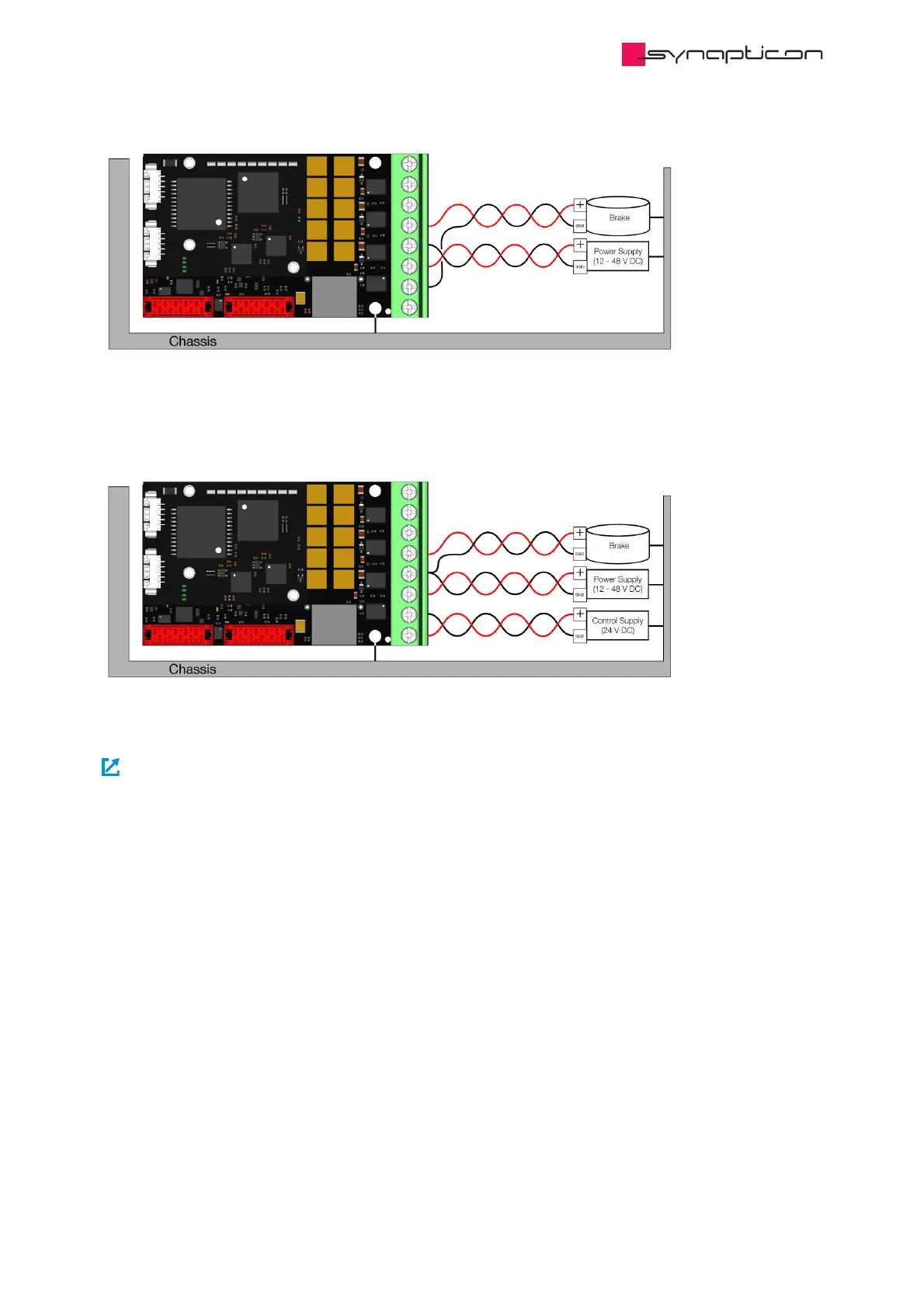

If Logic Supply is active, Ground of the brake can be connected to the Ground cable of the 48V power supply
in a spot close to the board or it can be connected together with the Ground of the 48V supply to the pin 5 of
the Main Supply connector if they fit in there.
For mounting please refer to our mounting instructions:
Mounting instructions
