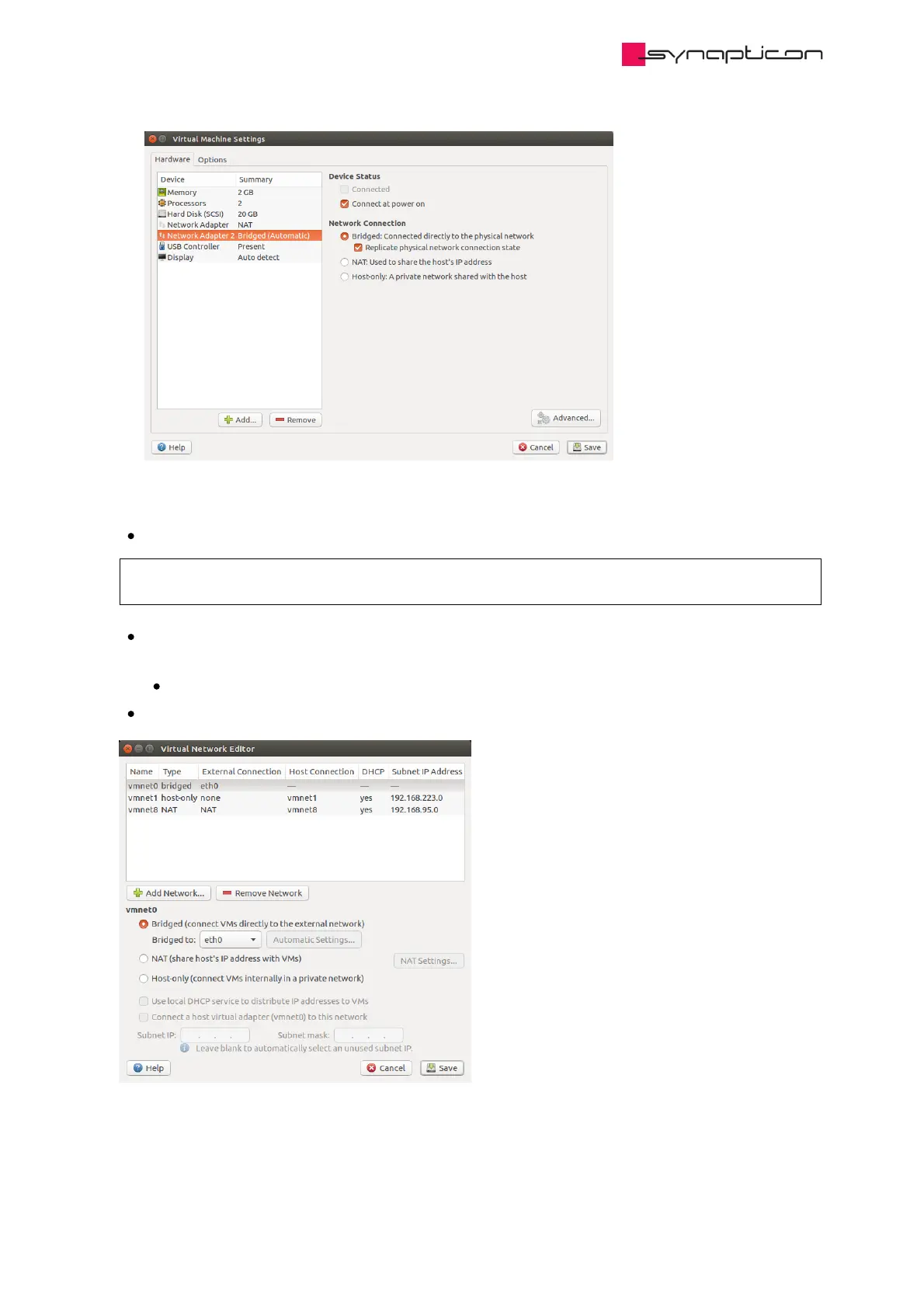

6. Network settings
Execute
sudo /usr/lib/vmware/bin/vmware-netcfg
Select the bridged network adapter and bridge it to the system network adapter to which the slaves
are connected to
The network adapter has to be an Ethernet connection, so it likely starts with “eth”
Save changes
7. Power up and connect the slaves.
To connect your host PC with the servo drive, simply plug the EtherCAT cable on your Ethernet port (RJ45) of
