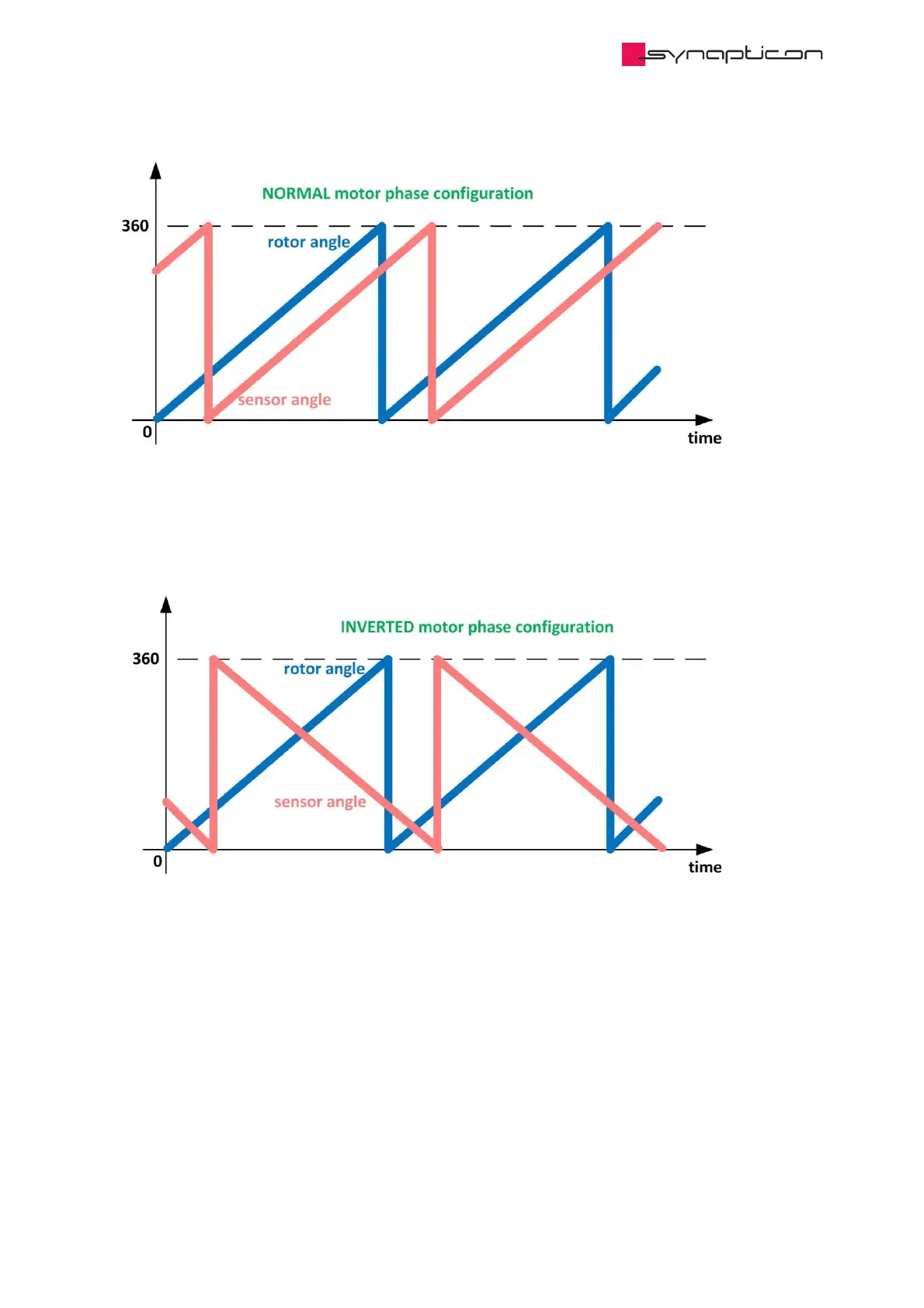

Fig. 1: Normal motor phase configuration (sensor angle and rotor angle are both increasing/decreasing
simultaneously)
Fig. 2: Rotor angle and position sensor angle are not increasing/decreasing in the same direction
(Inverted motor phases)
