Note
When the integrated encoder 1 is used, no external encoder can be used on port 1.
If integrated encoder 2 is used, only Hall can be configured as external encoder 2 on port 2.

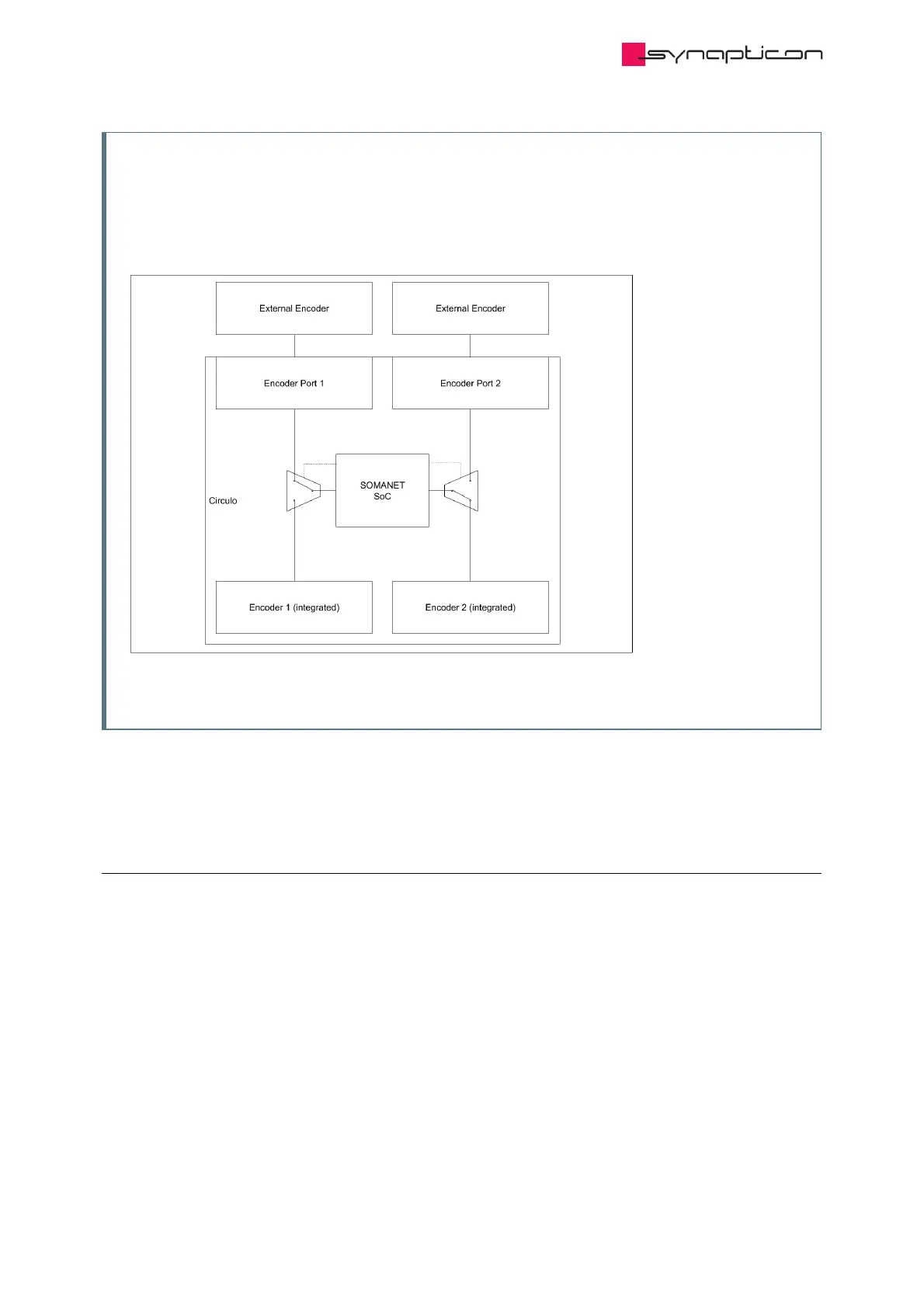

Please refer to the following image for details:
1.2.2.1.2.3.1 Encoder port 1
