SYNAPTICON SOMANET Circulo 7 - Page 65

Circulo 9

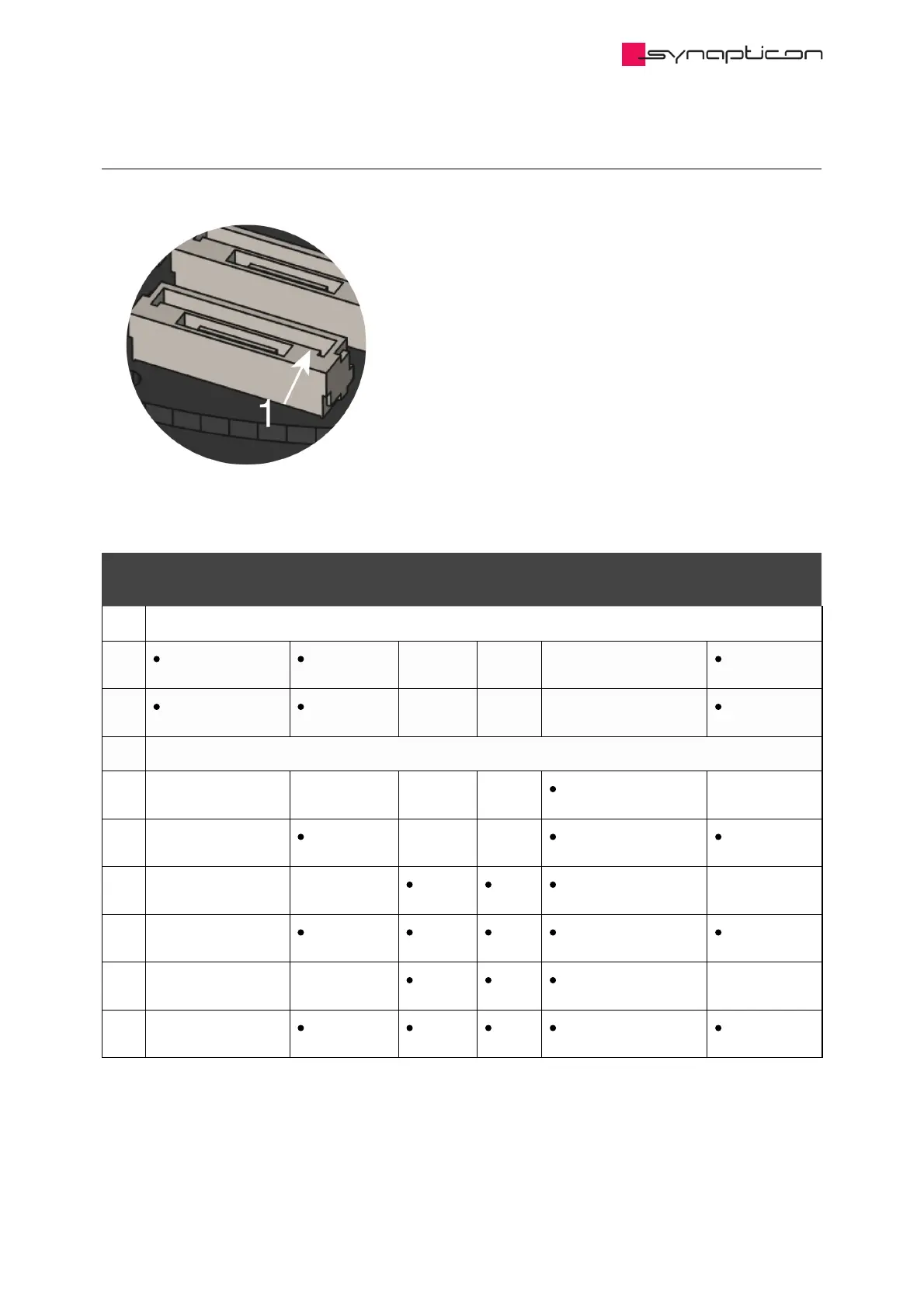

Pin
#
ABI / Fast ABI *
(Diff.)
ABI (Single-
Ended)
BiSS-C
(Diff.)
SSI
(Diff.)
Half-Duplex/A-
Format (Diff.)
HALL (Single-
Ended)
1 5 V **
2 MA- Clock- SD- / A
3 MA+ Clock+ SD+ / B
4 Ground
5 A- A SLO- Data- H3 / C
6 A+ SLO+ Data+
7 B- B H2 / B
8 B+
9 I- I H1 / A
10 I+
* Fast ABI is supported from firmware 5.0 on
** The current capacity of 5 V output is shared between all connectors and the total consumption is limited
to 250 mA.
