SYNAPTICON SOMANET Circulo 7 - Page 76

Circulo 9

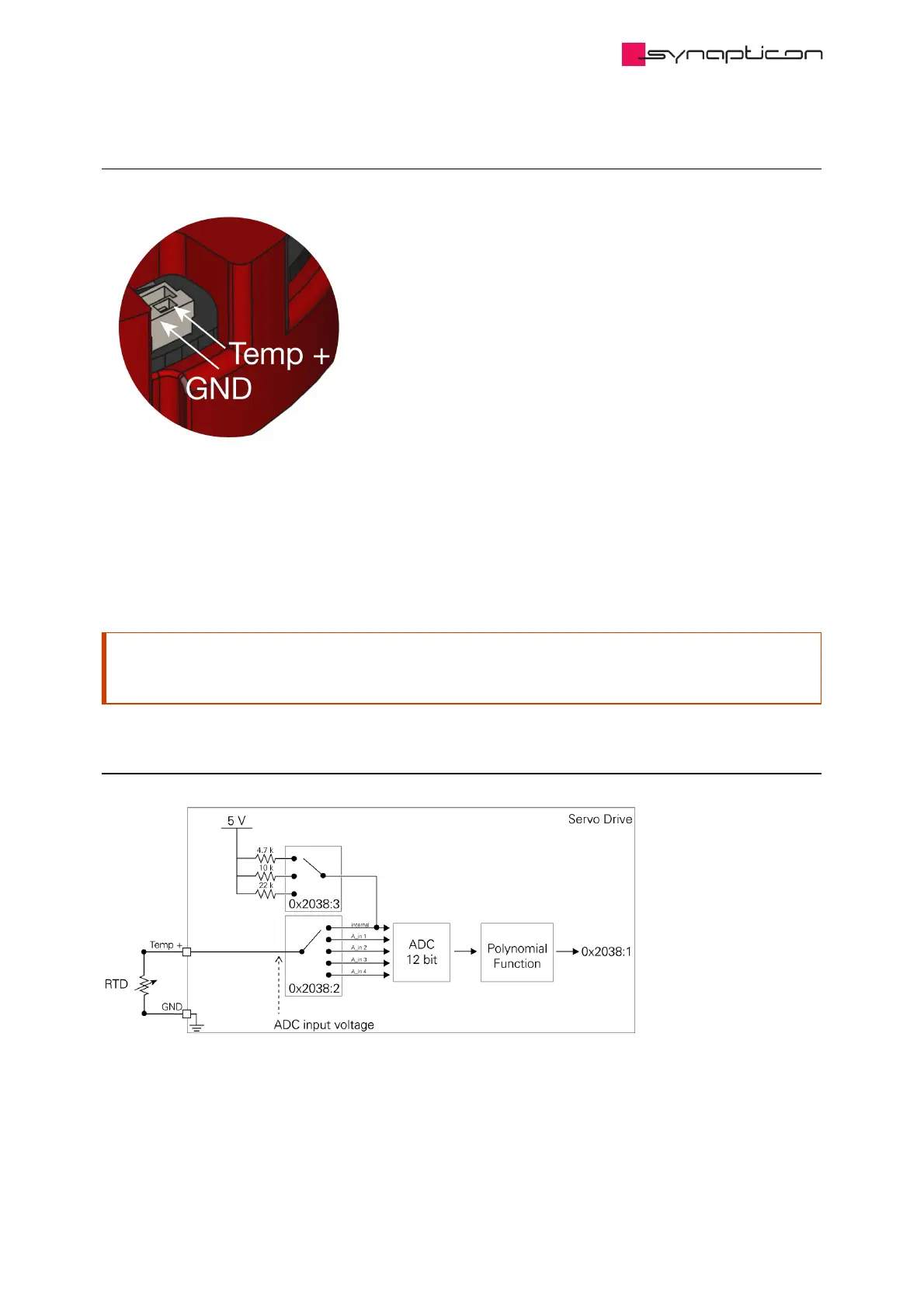

Circulo offers three different configurable integrated pull-up resistors: 4.7 kΩ, 10 kΩ and 22 kΩ.
Depending on the type of temperature sensor, different resistors in the servo drive need to be activated. This
is done internally with a multiplexer. The desired value can be selected via software through object 0x2038
subindex 3.
Attention
The ADC value is scaled to 16 bit since firmware v5.0.
Firmware v4.x
Synapticon Documentation
