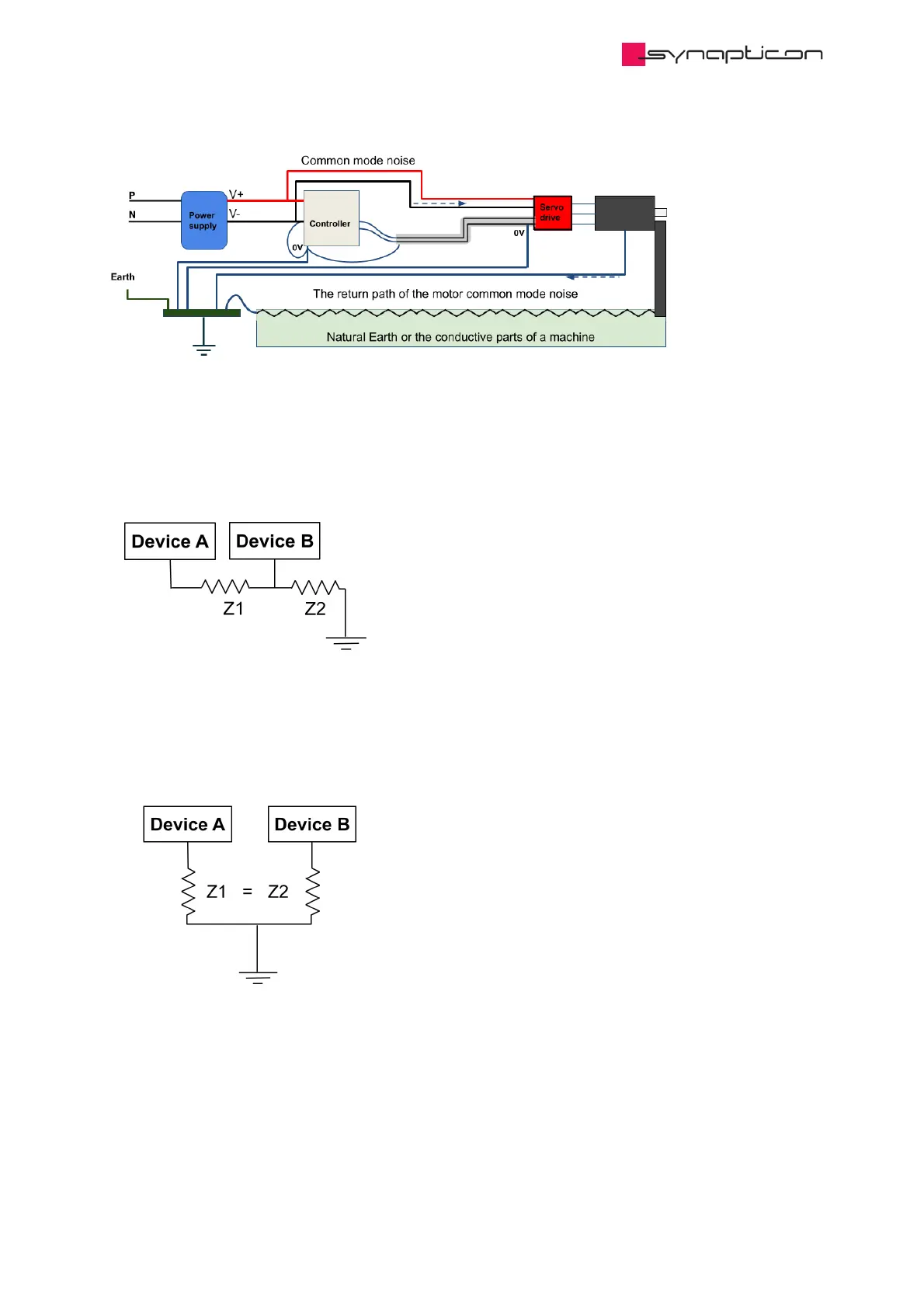

A low impedance earth connection is essential to have less EMI issues. For example, daisy-chaining will
increase the EMI issues and ground loops because of the unbalanced ground impedance.
Using a star connection for earthing will result in a better grounding balance and fewer issues with the
ground loop and EMI.
