To change the direction and the size of the design
98
Chapter 5
5. To change the direction and the size of the design
5-1. To perform enlargement, rotation, reversion (Data Conversion)
Set this function after data set. Setting contents here will be added in a design. So, when you embroider this
design next time, setting again will be unnecessary.

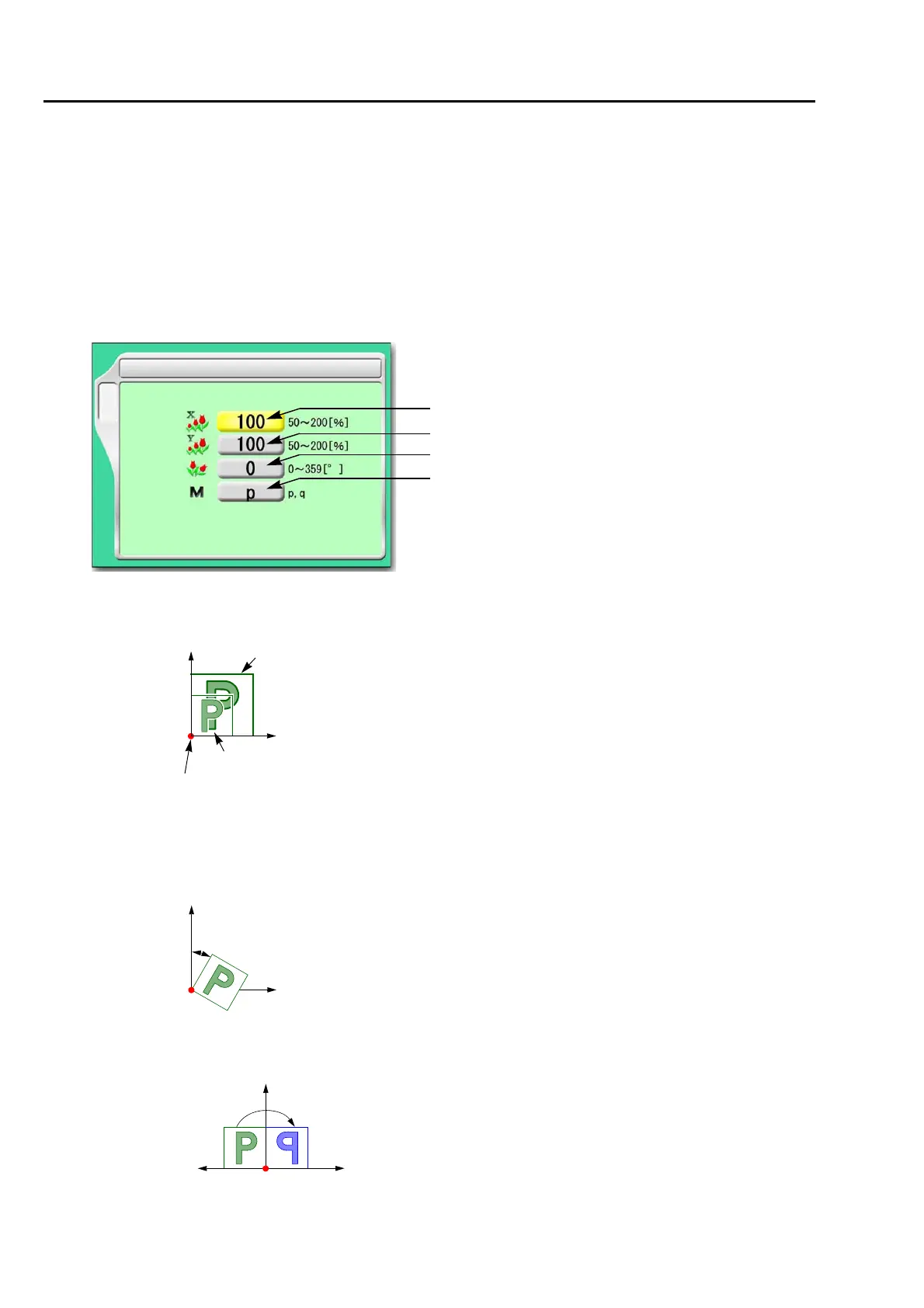

5-1-1. Screen
[a] Horizontal (X) scale ratio (%)
[b] Vertical (Y) scale ratio (%)
[c] Rotating angle (°)
[d] Reverse
3 Data Conversion
B
[a]
[b]
[c]
[d]
Y
X
Original size
After enlargement
The illustration shows an example of the same
scale ratio in X/Y.
Start point of design
Example: 30°
Y
X
Y
X
Not to perform To perform
