3. Lubrication
Select TF oil (packed with the machine), or the equivalent (viscosity grade = equivalent to VG20) to
this one for use.
To perform lubrication, use the oiler (accessory) and its nozzle (accessory).

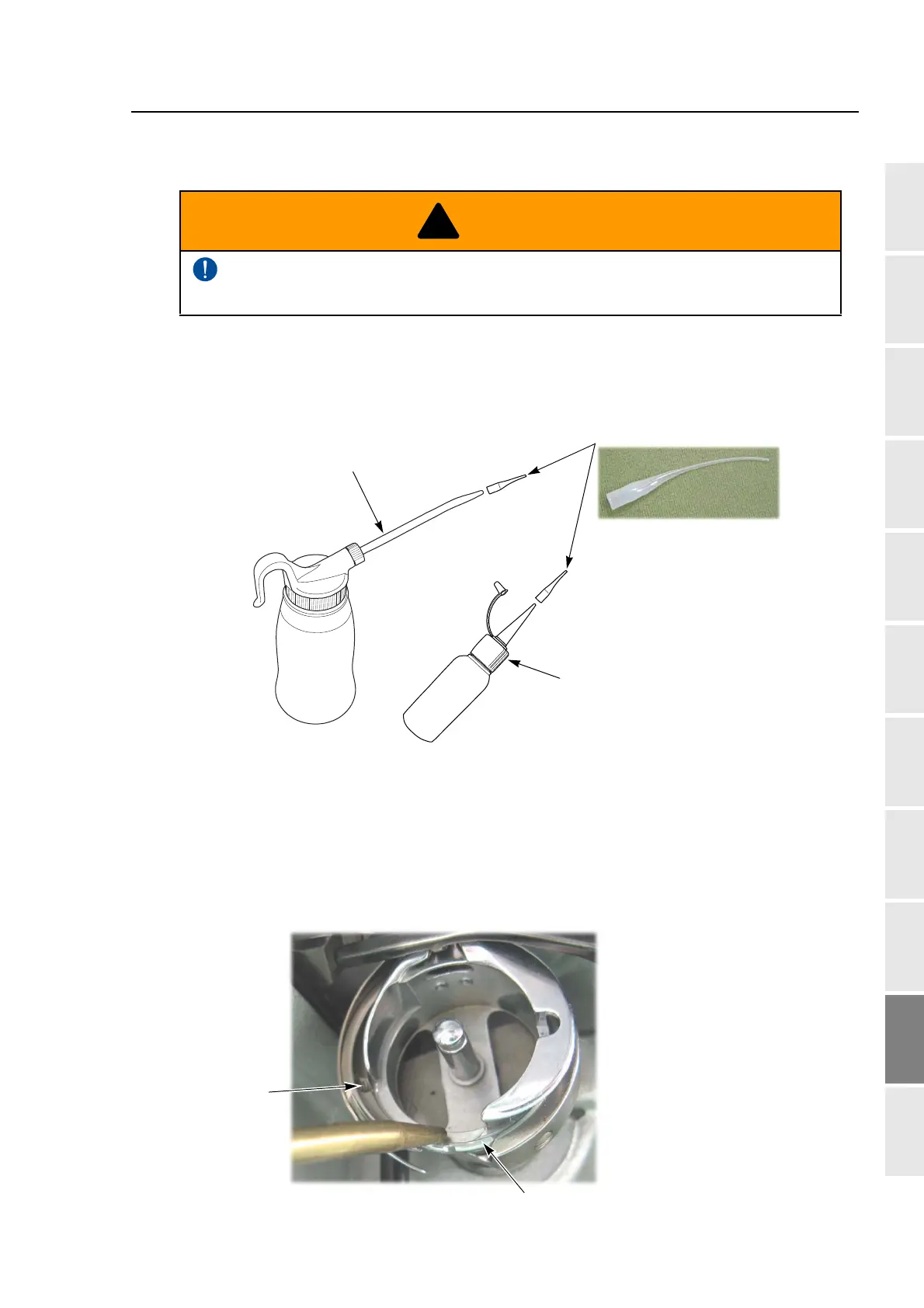

(1) Rotary hook
There are 2 lubricating spots (lubrication hole and raceway at the hook). When lubricating to the
lubrication hole, attach the nozzle (accessory) to the tip of the oiler. Cut the tip of the nozzle
according to necessary length.
To perform lubrication of the machine, turn off the power switch. You may sustain severe
injuries due to being entangled by moving machine units.
In case of single-head
machine
Nozzle
Oiler
Oiler
Race
Lubrication hole
Lubrication cycle: Once/5 to 6 hours
