TAJIMA TWMX-C - Switching of Input Voltage (some Spec. Only)

239
Spec. of the machine
Chapter 11
1
2
3
4
5
6
7
8
9
10
11
QS10

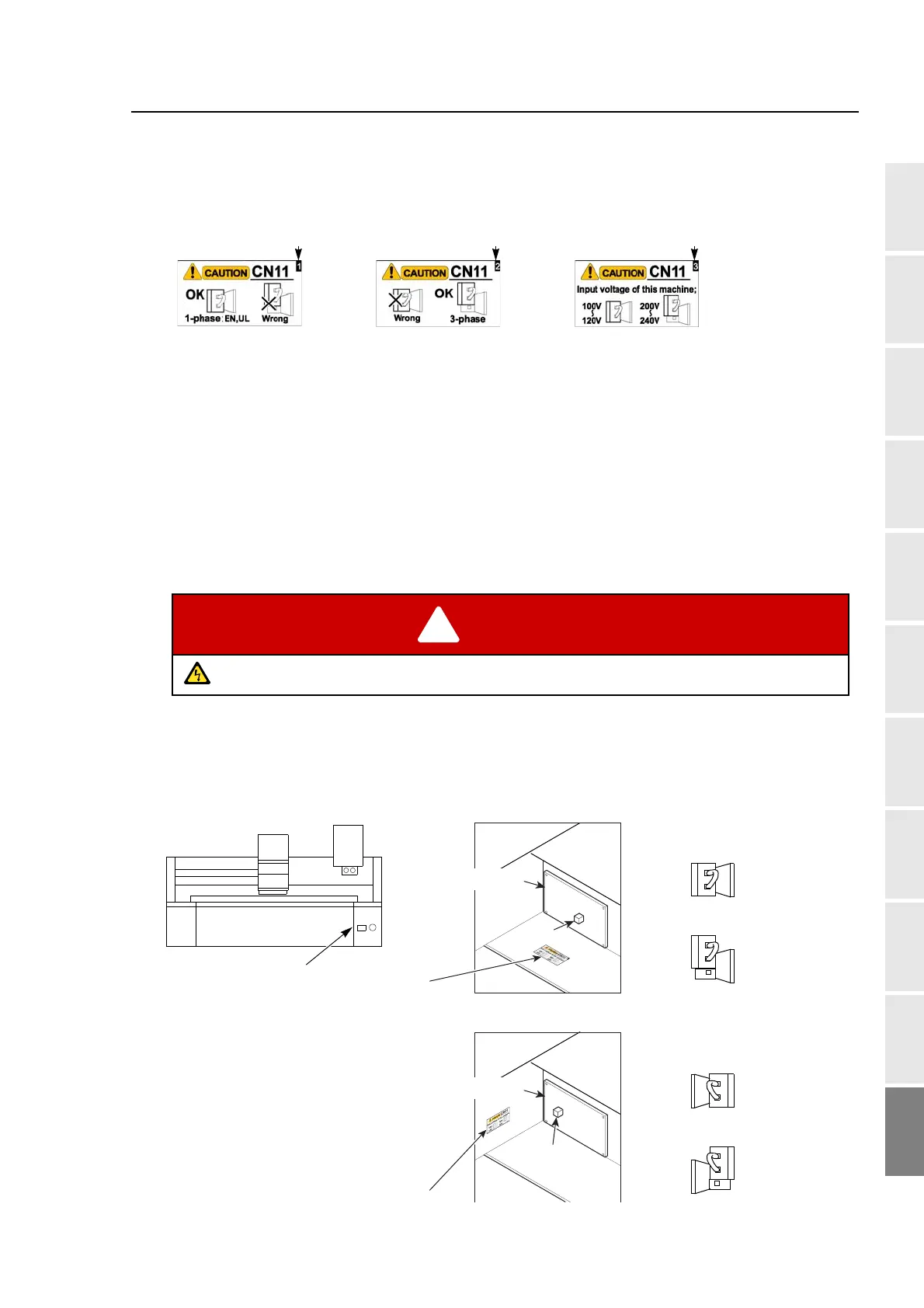

1-3. Switching of input voltage (some spec. only)
The following label (either of one) is stuck at the lower part of the power supply card. Only the model
on which label No.3 is stuck can switch input voltage.
However, since the setting is performed according to your voltage spec. at shipment, it is not
necessary to switch input voltage in usual usage. Perform switching of input voltage only in the
following condition.
(a) When the machine was moved for installation to the place whose voltage spec. is different from
that at shipment
(b) When you replace power supply card and connection of the connector CN11 is different from
your voltage spec.
1-3-1. How to switch
In case of TFMX-C single-head machine and TWMX-C models
(1) Detach the stand cover.
(2) Change connection of the connector CN11 on the power supply card.
Since there could be danger of electric shock, perform the work after turning OFF the power.
Exclusive for single-phase/100 V
Label No.1
For 3-phase/200 V Single-phase
100 V or 200 V
Label No.2 Label No.3
! DANGER
CN11
Label No.3
[Connection of CN11]
In case of 100 V series
In case of 200 V series
Power supply card
Stand cover
TFMX-C single-head machine
CN11
Label No.3
[Connection of CN11]
In case of 100 V series
In case of 200 V series
Power supply card
TWMX-C
