9-2. To insert the stitch (Data Edit "Insert")
When this operation is performed in the middle of embroidery, data set will be canceled. If the stitch with a
length is inserted, a design will be displaced hereafter.

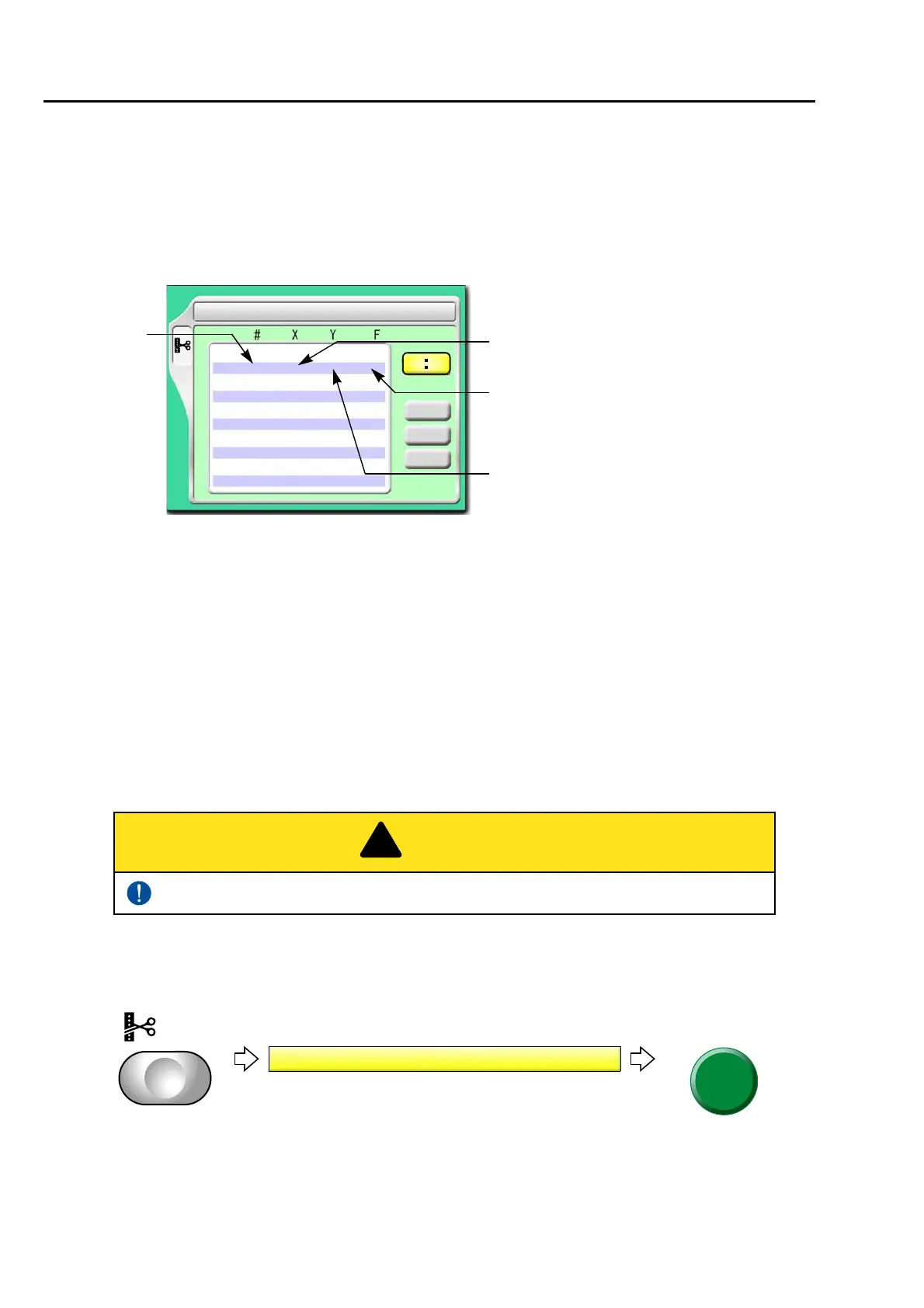

9-2-1. Screen
[a] Stitch No.
[b] X data (Data to move the frame in X-axis direction)
When the value is 8, the frame travel amount is 0.8 mm.
[c] Function Code(→p.243)
It is the code to indicate the role of the stitch.
[d] Y data (Data to move the frame in Y-axis direction)
When the value is 4, the frame travel amount is 0.4 mm.
9-2-2. How to operate
The following is an example that non-data (X: 0.0, Y:0.0) jump code is added to 120th stitch.
(1) To open screen
The original design will be overwritten after editing. Back up design data according to need .
