9. To edit design
9-1. To modify the stitch (Data Edit "Modify")
When this operation is performed in the middle of embroidery, data set will be canceled. If stitch length after
change is different from that before change, a design will displace hereafter.
9-1-1. Screen

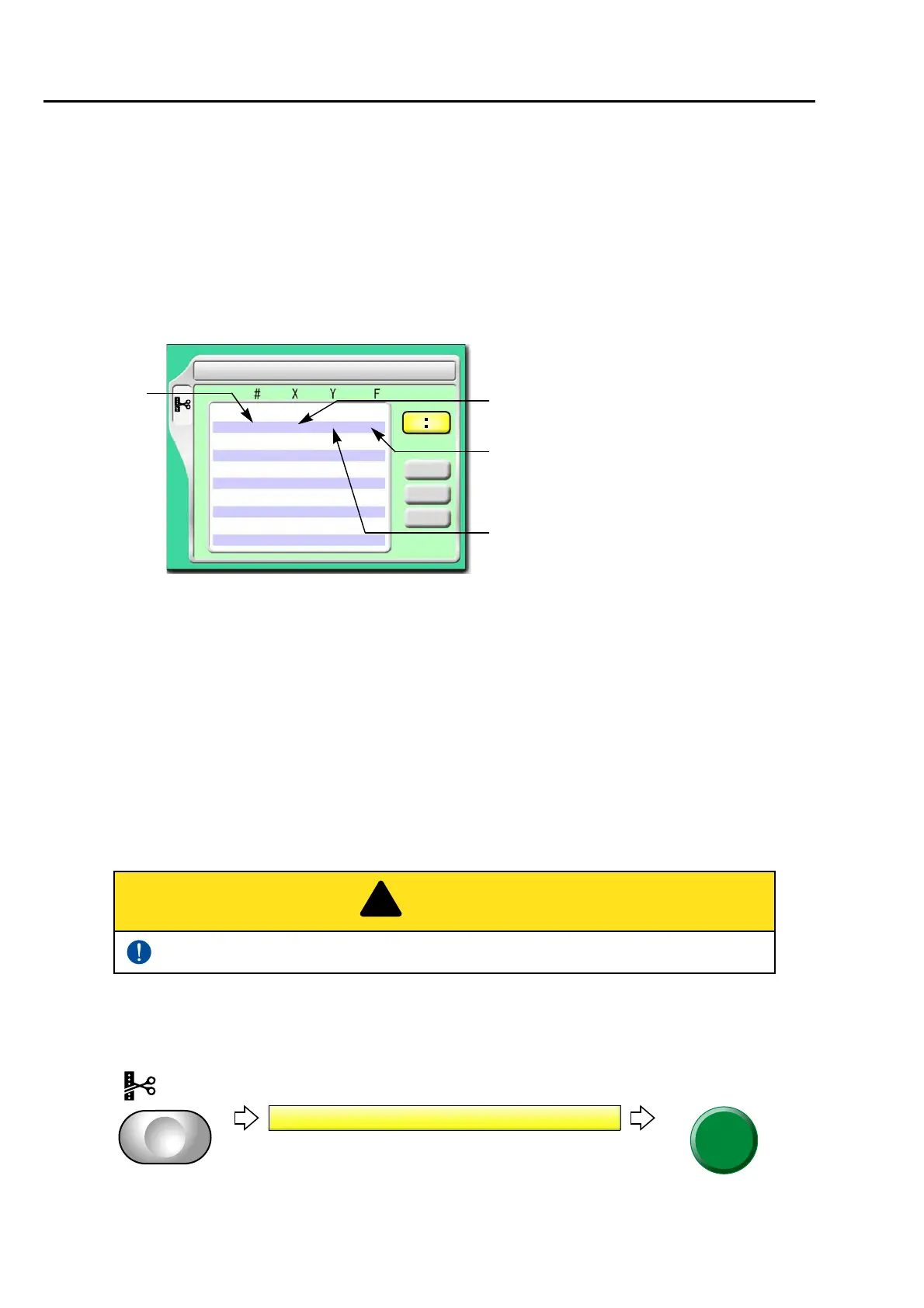

[a] Stitch No.
[b] X data (Data to move the frame in X-axis direction)
When the value is 8, the frame travel amount is 0.8 mm.
[c] Function Code(→p.243)
It is the code to indicate the role of the stitch.
[d] Y data (Data to move the frame in Y-axis direction)
When the value is 4, the frame travel amount is 0.4 mm.
9-1-2. How to operate
The following is an example that 20th stitch is changed to non-data (X: 0.0, Y:0.0) jump code.
(1) To open screen
The original design will be overwritten after editing. Back up design data according to need.
1 Data Edit
Delete
1
2
3
4
5
6
7
8
9
10
00Jump
84Stitch
83Stitch
11 5 Stitch
88Stitch
113Stitch
-11 2 Stitch
-12 -3 Stitch
-11 7 Stitch
-25 15 Stitch
Modify
Insert
