11-6. To release fixing of main shaft motor (weak brake)
It is the setting to release the fixing of the main shaft motor temporarily while the main shaft stops. This
function is used for the maintenance of the machine mainly.

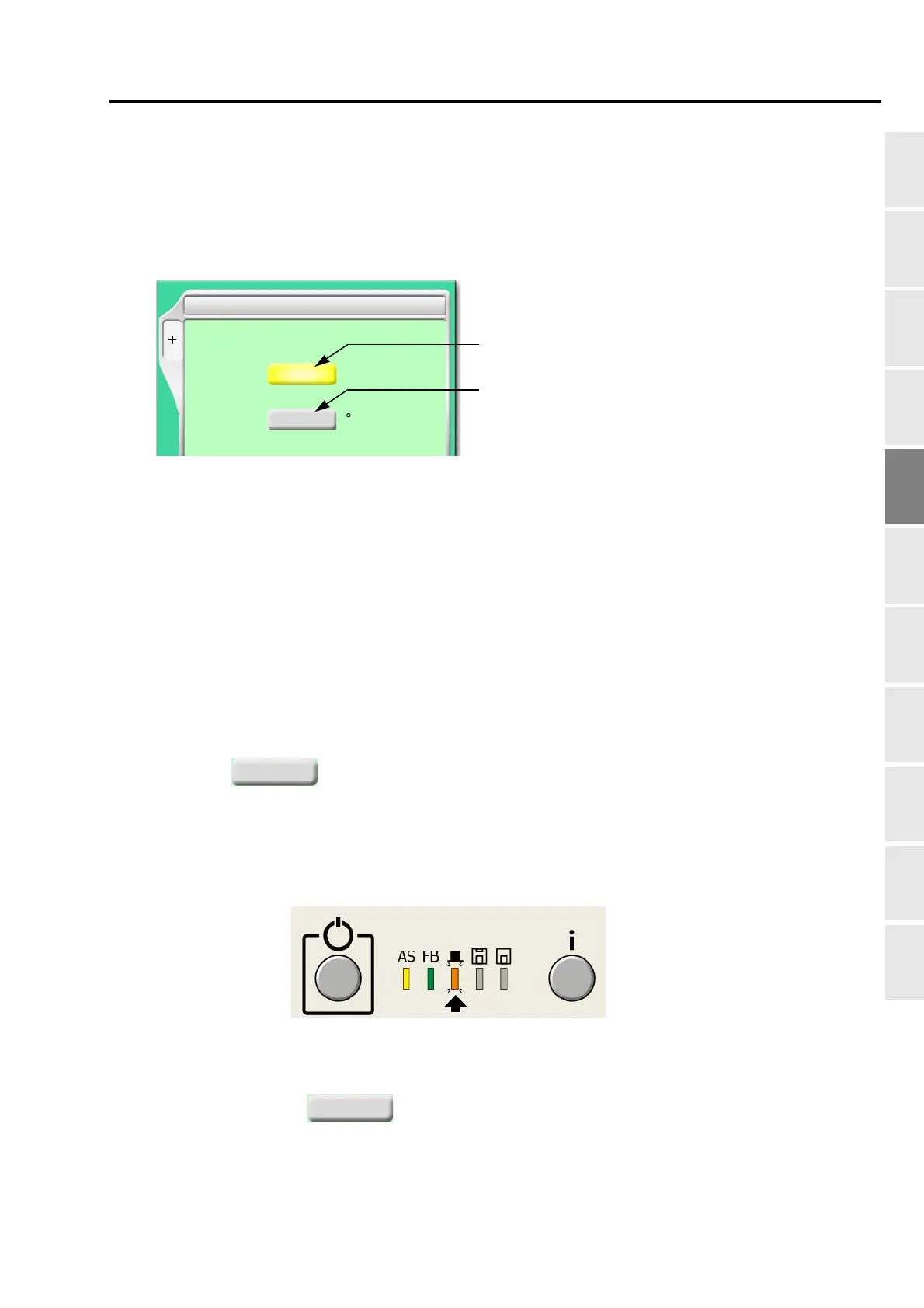

11-6-1. Screen
[a] Fixing of main shaft motor
YES: To fix the main shaft motor while the main shaft stops (usual setting)
NO: Not to fix the main shaft motor while the main shaft stops
Even if "NO" is selected, it will be switched to "YES" after starting the machine.
Always NO: Not to fix the main shaft motor always while the main shaft stops
"Always NO" will be displayed in TFMX-C,TWMX-C only.
[b] Current main shaft angle
When you desire to check the main shaft angle, set the value of above [a] to "NO" or "Always
NO", and then turn the main shaft.
When left code is displayed, follow the procedure below.
1.
2.
3.
F3
2 Weak Brake
SET
YES
100
YES / NO/ Always NO
[]
[a]
[b]
***
Set the value of [a] to "NO".
Turn the main shaft slowly until the lamp in the figure below (indicated by an
arrow) starts blinking. Method of turning the main shaft differs depending on the
models. For detail, refer to the separate "Machine Setup Instructions".
After the screen is switched (press E key) and the original screen is returned,
"100" (Fixed position) will be displayed.
100
