Trouble examples and Corrective actions
Chapter 9

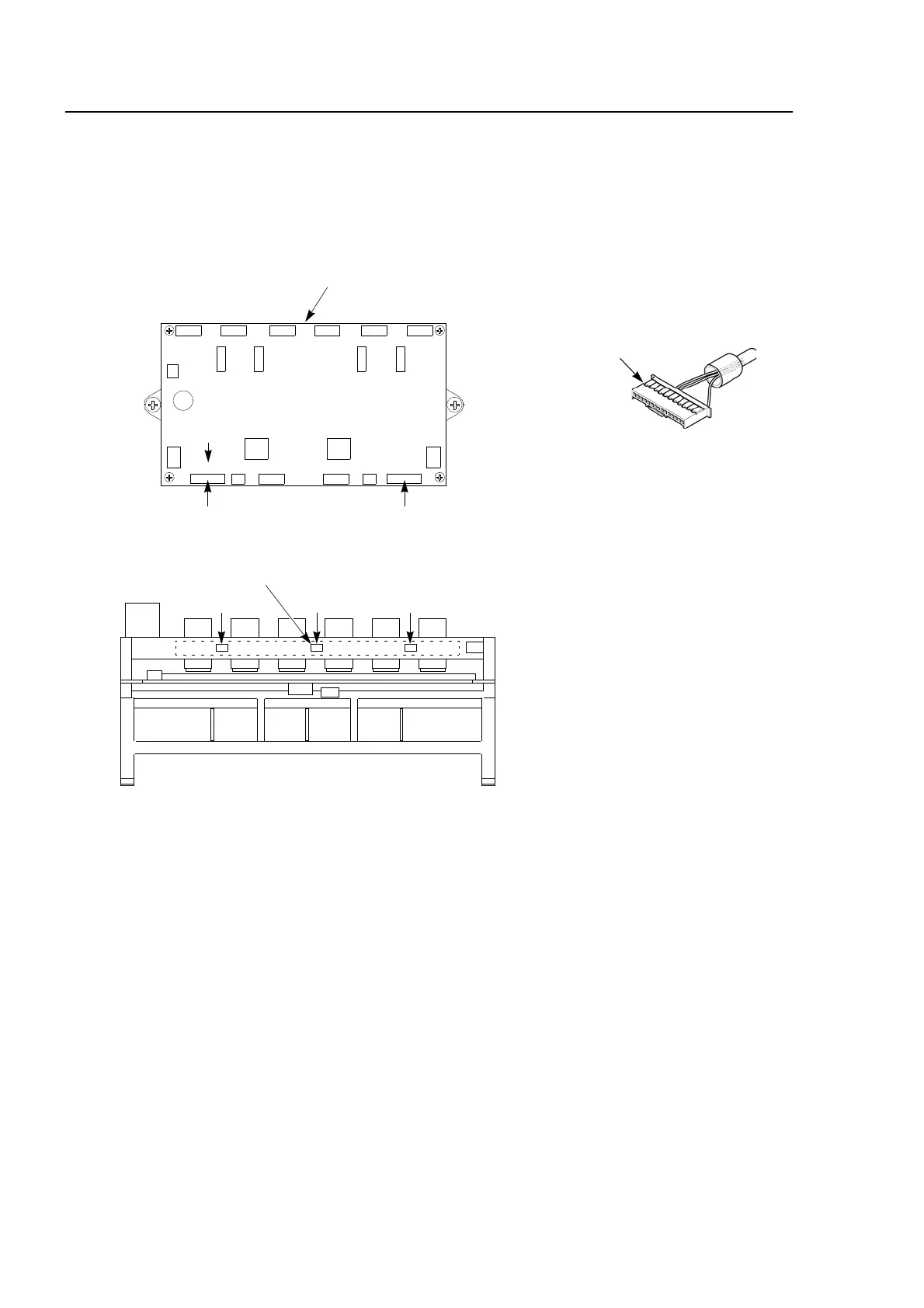

(2) Connect the jumper connector to the connector of the head card.
To suspend the third head, connect the jumper connector to the connector for odd-numbered
head.
One piece of head card is used for two heads.
1H/2H 3H/4H 5H/6H
CN9 CN20
For odd-numbered head
Accessory
Head card
Jumper connector
Connector
Head card
For even-numbered head
