HYDRAULIC UNITSGEAR PUMP
GEAR PUMP (HIGH FLOW)

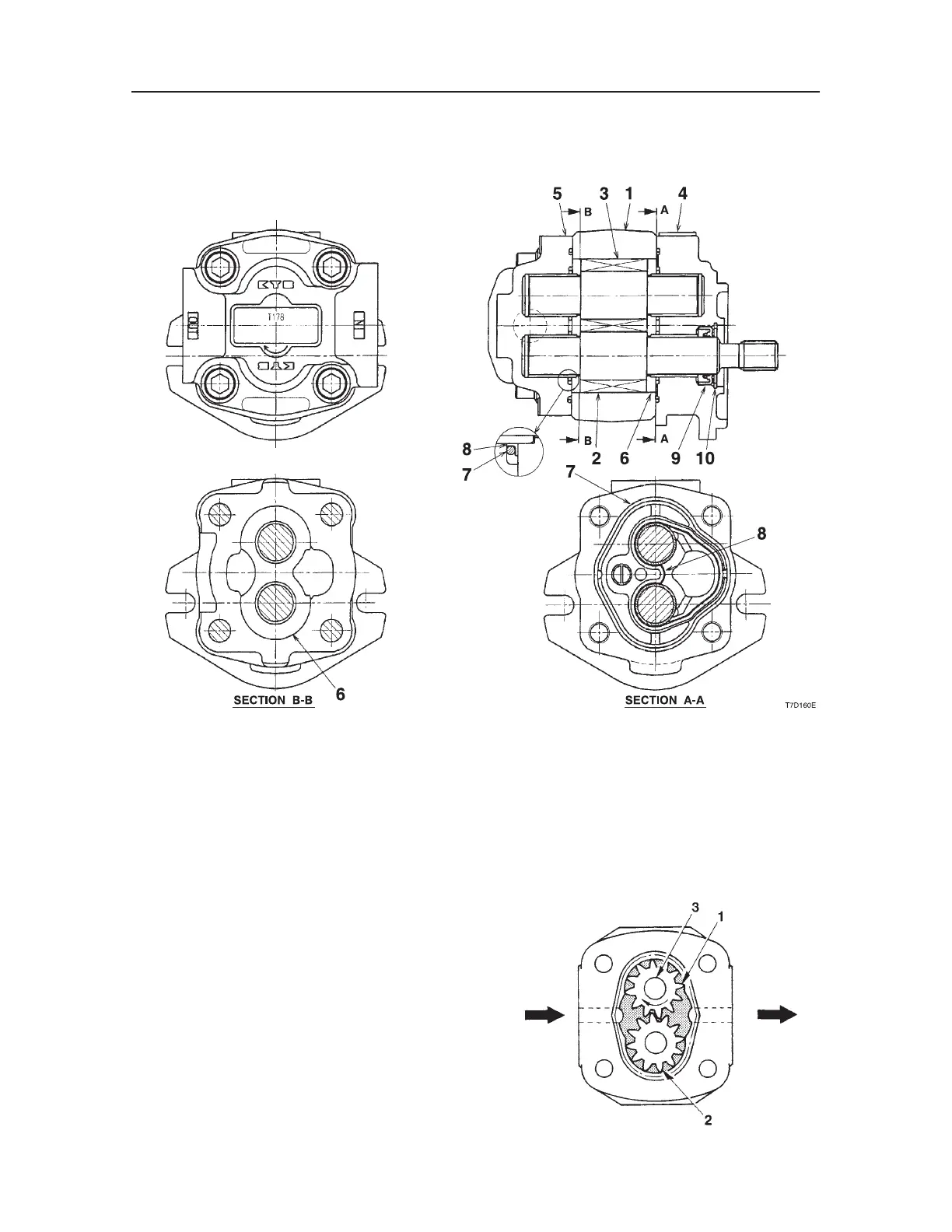

CONSTRUCTION
Gear Pump
The gear pump consists of a single gear case, inside
of which is a drive gear (1) and a driven gear (2)
engaged with each other. By turning the drive shaft
(3), the space between the case and the gears is filled
with oil. This oil is thus sent through the pump from
the inlet to the outlet.
1. Housing
2. Drive Gear
3. Driven Gear
4. Flange
5. Cover
INLET OUTLET
Y1-D101E
6. Bushing
7. Seal
8. Backup Ring
9. Oil Seal
10. Snap Ring
