Takeuchi TL150 Workshop Manual

II-18
SPECIFICATIONS
SERVICE STANDARDS
Unit: mm
Code Item Designated Standard
Servicing
Procedure
Basic
Dimension
Allowable Tolerance
Standard
Clearance
Allowable
Clearance
Replace
Shaft Hole
A Lift Arm & Frame 45
-0.06
-0.09
+0.17
+0.12
0.18~0.26 1.0
B Arm Cylinder & Frame 45
-0.06
-0.09
+0.20
+0.05
0.11~0.29 1.0
C Arm Cylinder & Lift Arm 45
-0.06
-0.09
+0.20
+0.05
0.11~0.29 1.0
D Bucket Cylinder & Lift Arm 45
-0.06
-0.09
+0.20
+0.05
0.11~0.29 1.0
E
Bucket Cylinder & Quick-
Hitch
45
-0.06
-0.09
+0.20
+0.05
0.11~0.29 1.0
F Lift Arm & Quick-Hitch 45
-0.06
-0.09
+0.17
+0.12
0.18~0.26 1.0

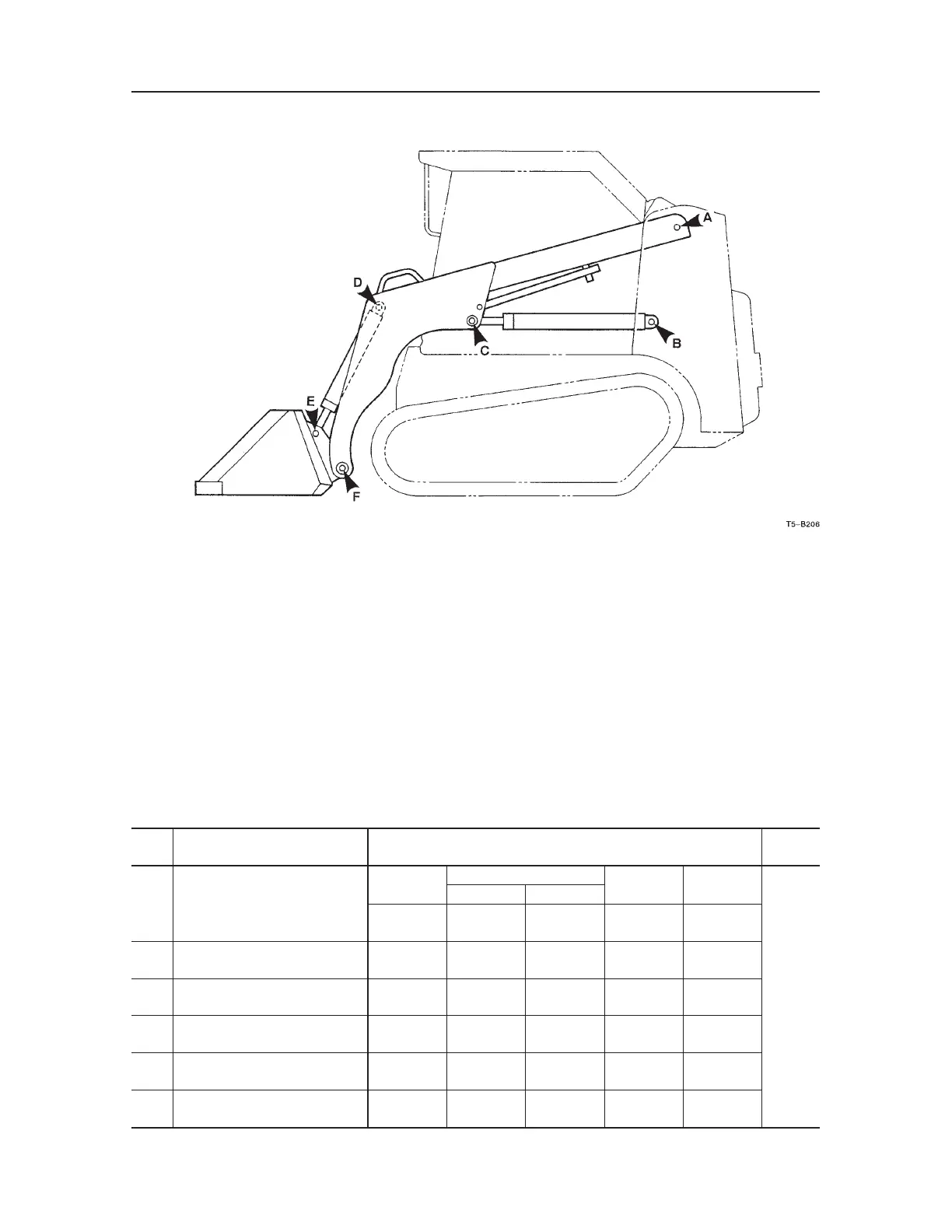

Pin and Bushing Clearance

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
