MACHINE CONFIGURATION
DRIVE SYSTEM
INSPECTION AND ADJUSTMENT
Adjusting the Throttle Lever
Engine Speed

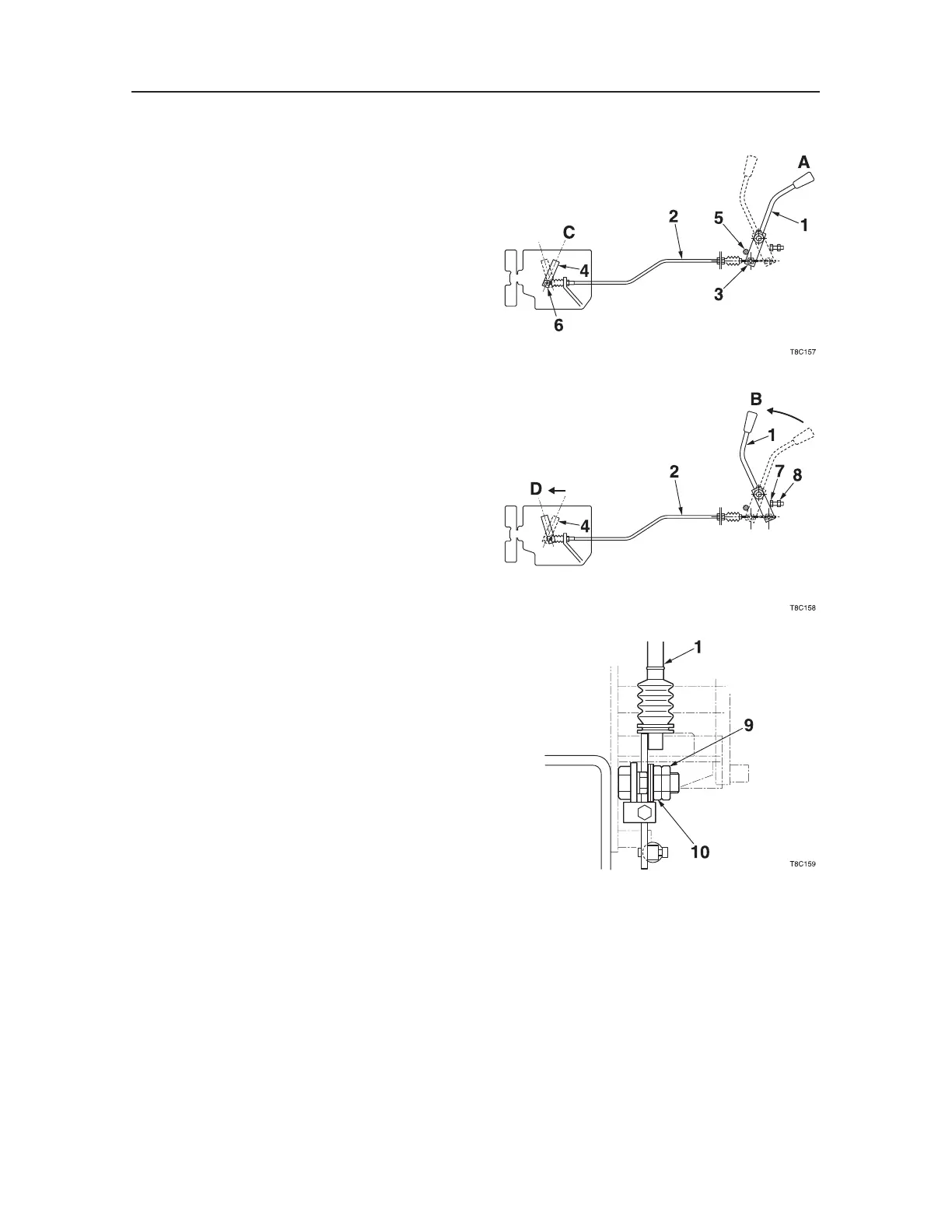

1. Fasten the wire (2) to the throttle lever (1) by
using the wire lock pin (3).
2. Move the throttle lever (1) to the A (low idle)
position and the governor control (4) to the C
position (idle).
• Make sure that the throttle lever (1) hits
against the stopper (5).
3. Secure the wire (2) with the wire lock pin (6).
4. Move the throttle lever (1) to the B (full throttle)
position and the governor control (4) to the D
(full throttle) position.
• Adjust the stopper (7) so that the throttle lever
(1) hits against the stopper (7), and tighten the
lock nut (8) to fasten the stopper.
Control Force
1. Loosen the lock nut (9), and turn the nut (10) to
adjust the control force.
Control force: 44.1 N
2. Upon completion of the adjustment, tighten the
lock nut (9) by holding the nut (10) to prevent it
from turning.
3. Operate the throttle lever (1) again, and make
sure that the control force is stable.
