III-9
MACHINE CONFIGURATIONDRIVE SYSTEM

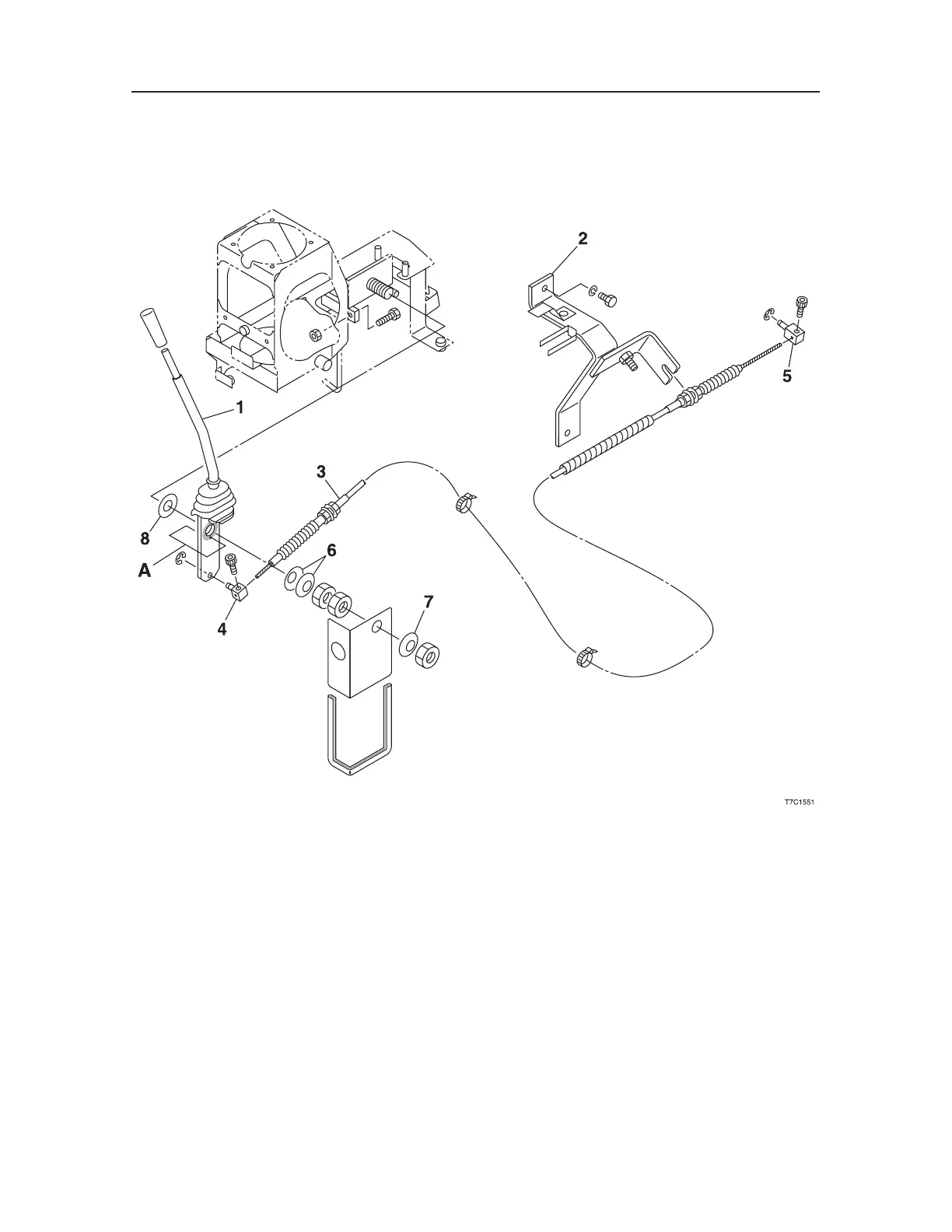

1. Lever
2. Bracket
3. Accelerator Wire
4. Wire Stopper
5. Wire Stopper
6. Conical Washer
7. Washer
8. Washer
Engine Control
A: Apply molybdenum disulfide grease.
