II-12
SPECIFICATIONSSERVICE STANDARDS
SERVICE STANDARDS
TRAVEL SYSTEM

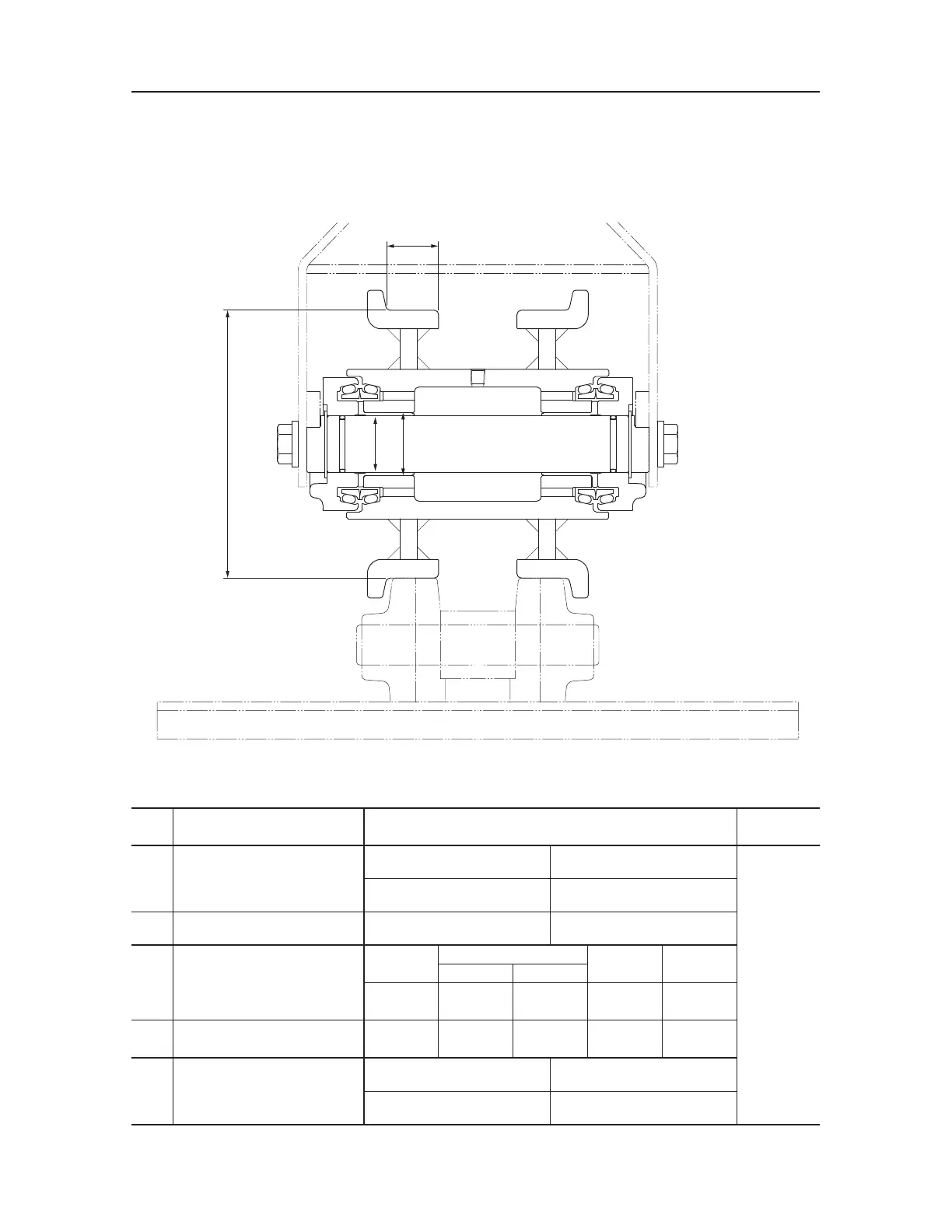

Track Roller A
Unit: mm
Code Item Designated Standard
Servicing
Procedure
Basic Dimension Allowable Value
Replace
A Tread Outer Diameter 188 180
B Width of Tread 36.5 40.5
Basic
Dimension
Allowable Tolerance
Standard Allowable
Shaft Hole
C
Shaft and Bushing Bore
Diameter Clearance
40
-0.050
-0.075
±±±
D
Roller and Bushing Outer
Diameter Interference
44
+0.15
+0.10
+0.025
-0.020
0.075~
0.170
±
Standard Value Allowable Value
Shaft End Play 0.7 1.2


