III-4

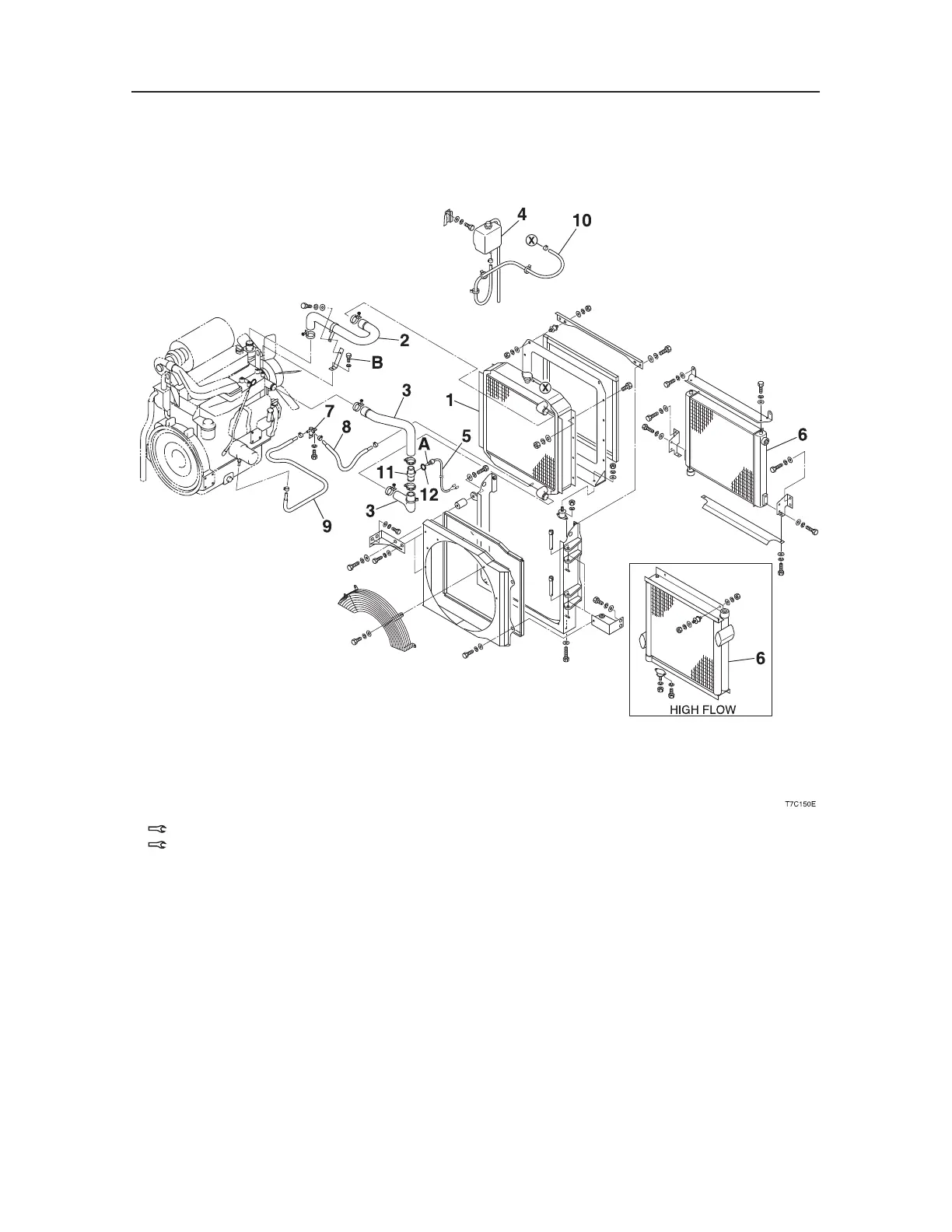

MACHINE CONFIGURATIONDRIVE SYSTEM
Radiator
A: 4.9 N·m
B:
39.2 N·m
1. Radiator
2. Radiator Hose (Upper)
3. Radiator Hose (Lower)
4. Sub Tank
5. Sensor
6. Oil Cooler
7. Drain Valve
8. Drain Hose
9. Drain Hose
10. Hose
11. Joint
12. O-Ring
