Takeuchi TL150 Workshop Manual

IV-96
HYDRAULIC UNITSCYLINDERS

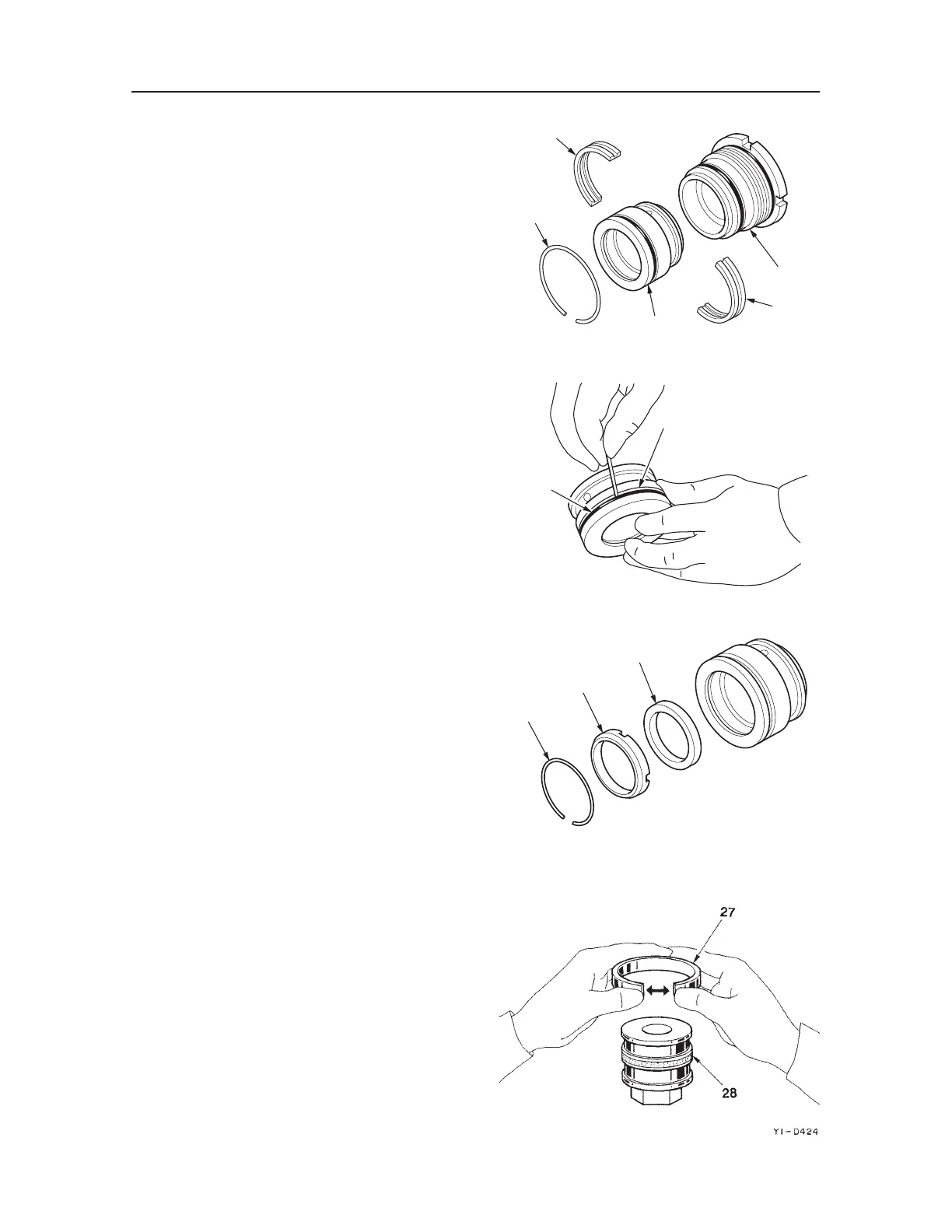

4. Separate the rod cover assembly (6) and retainer
assembly (7).
a. Remove the stopper (8) and separate the con
-
nector (9) into two to separate it from the rod
cover assembly.
Retainer
1. Remove the O-ring (14) and backup ring (15).
2. Remove the stopper (16), spacer (17) and cush
-
ion seal (18).
Piston
1. Remove the wear ring (27), then remove the
piston packing (28).
• Spread the wear ring at the cut portion the
minimum amount necessary for it to be re-
moved. Remove it in the direction of the
shaft.
• Either cut the piston packing off or use a flat
bladed screwdriver, etc. to take it off.
E5D412
6
9
7
8
9
E5D416
14
15
E5D417
18
17
16
