IV-92
HYDRAULIC UNITS
CYLINDERS
CYLINDERS

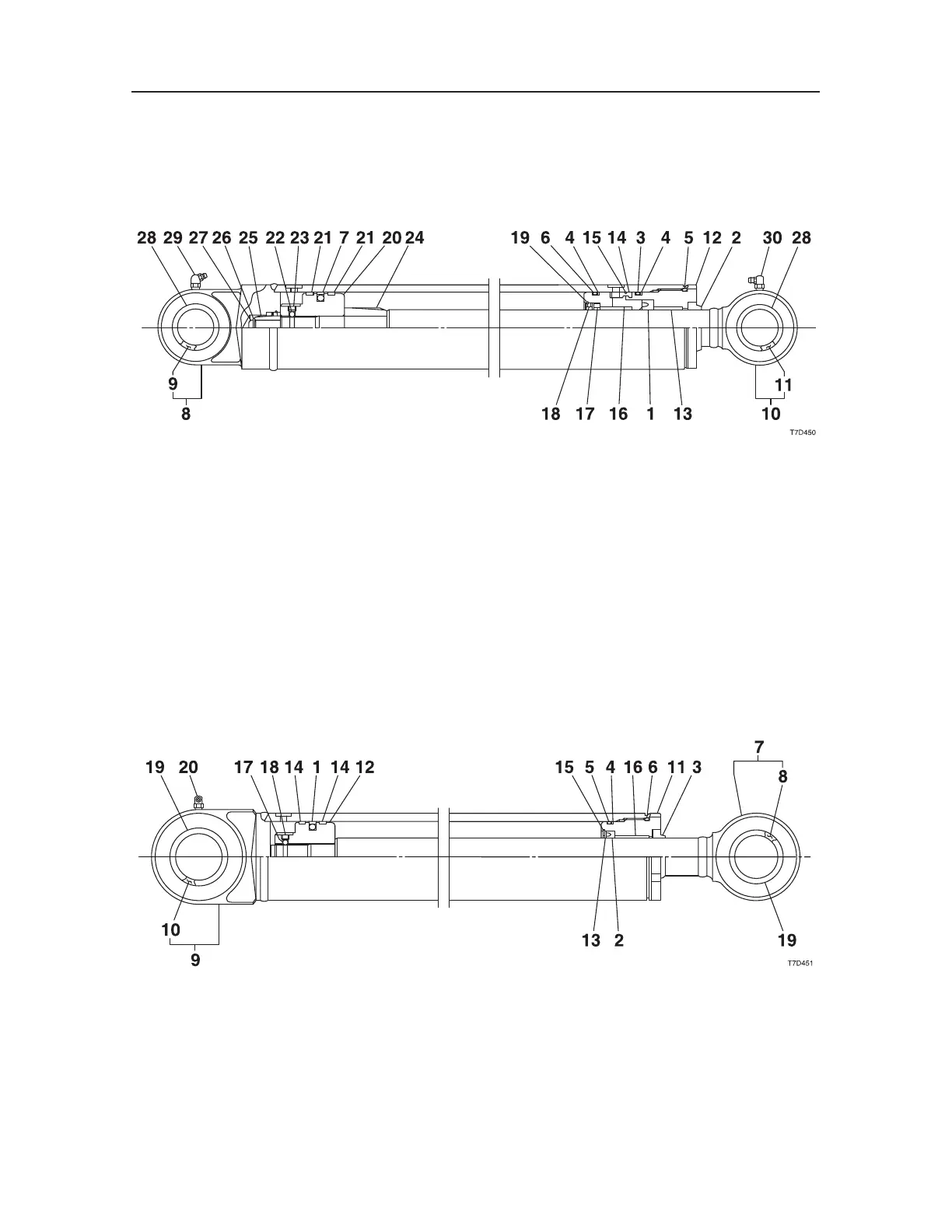

CONSTRUCTION
Arm Cylinder
1. Rod Packing
2. Dust Seal
3. O-ring
4. Backup Ring
5. O-ring
6. O-ring
7. Piston Packing
8. Tube
9. Bushing
10. Piston Rod
11. Bushing
12. Rod Cover
13. Bushing
14. Connector
15. Stopper
16. Retainer
17. Cushion Seal
18. Spacer
19. Stopper
20. Piston
21. Wear Ring
22. Ball
23. Set Screw
24. Cushion Bearing
25. Cushion Bearing
26. Washer
27. Screw
28. Dust Seal
29. Grease Nipple
30. Grease Nipple
Bucket Cylinder
1. Piston Packing
2. Rod Packing
3. Dust Seal
4. Backup Ring
5. O-ring
6. O-ring
7. Piston Rod
8. Bushing
9. Tube
10. Bushing
11. Rod Cover
12. Piston
13. Packing Holder
14. Wear Ring
15. Snap Ring
16. Bushing
17. Ball
18. Set Screw
19. Dust Seal
20. Grease Nipple
