III-33
MACHINE CONFIGURATIONFRAME

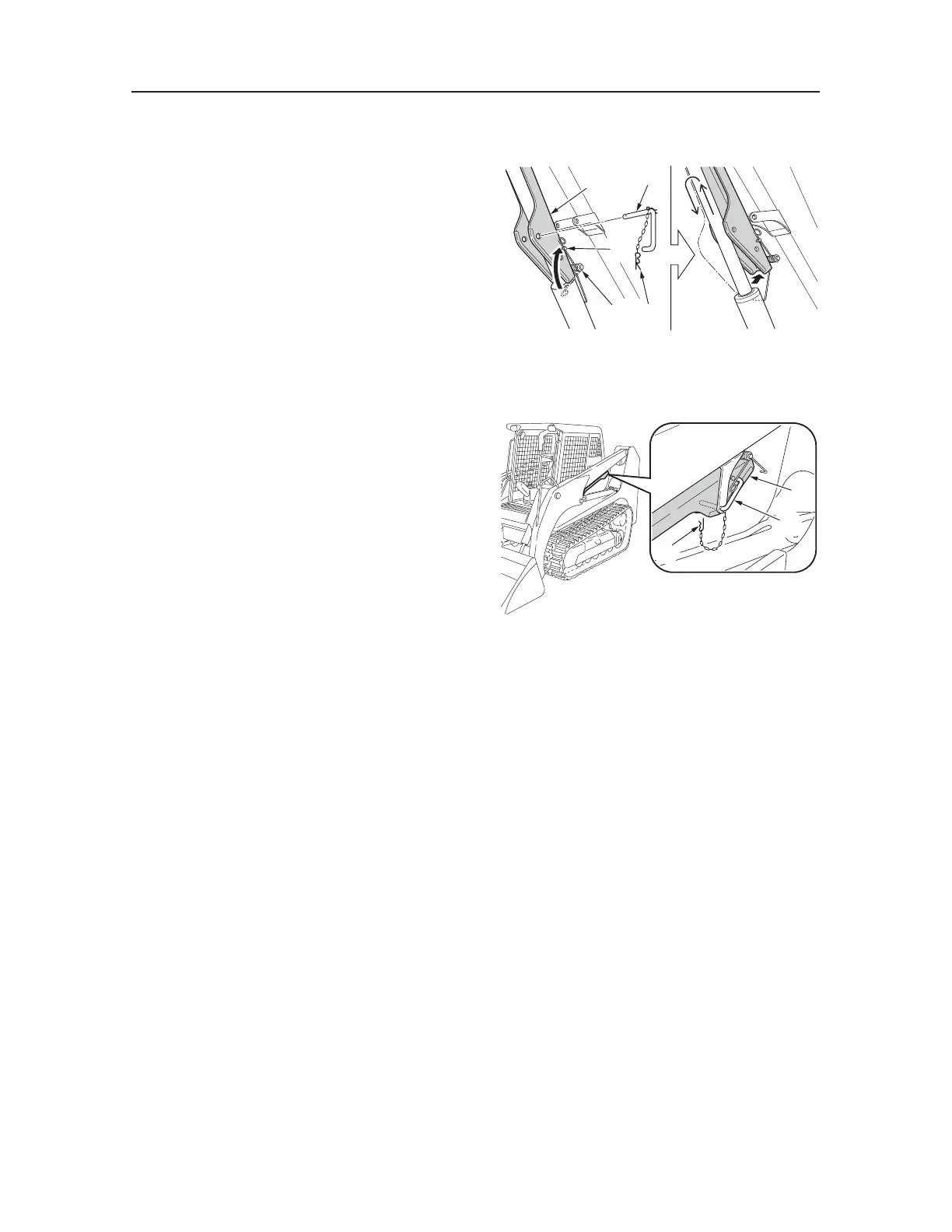

Disengagement
1. Remove the rear R-pin (4) from the locking pin
(1).
2. Pull out the locking pin (1) from the lift arm stop
(2).
3. Hook the end part of the spring (3) onto the hook
(5) of the lift arm stop (2).
4. Sit in the seat, fasten the seat belt, start the en-
gine and lower the safety bar.
5. Raise the lift arms slowly until the spring (3)
will lift the lift arm stop (2) off the cylinder
rod.
6. Lower the lift arms slowly to the ground and
stop the engine.
7. Raise the lift arm stop (2) into storage position
and insert the locking pin (1) through lift arm
stop and bracket.
8. Install the R-pin (4) to the locking pin (1).
T9C412
1
2
3
4
5
T9C413
1
2
4
