III-43
MACHINE CONFIGURATION
ATTACHMENTS

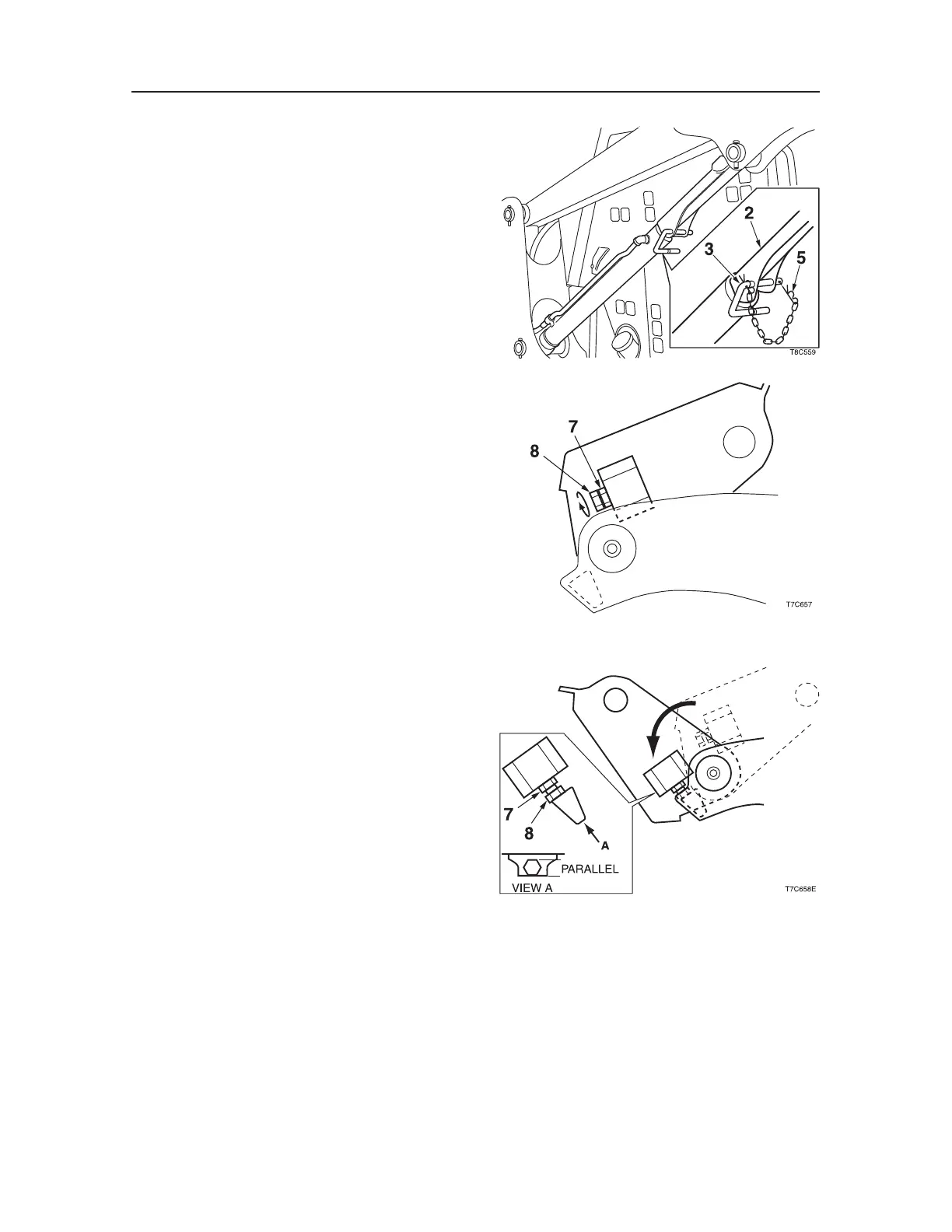

5. Lower the lift arm until the arm stopper (2) hits
against the edge of the cylinder tube and be-
comes fixed, and stop the engine.
6. Insert the lock pin (3) in the front hole of the
arm stopper (2) and pass it through under the
cylinder rod to the back hole.
7. Attach the R pin (5) to prevent the lock pin (3)
from falling off.
Adjusting the Bucket Stoppers
Loosen the lock nuts (7) and screw in the stopper
bolts (8) fully.
1. Start the engine, slowly extend the bucket cylin-
ders to the maximum length, and then stop the
engine.
2. Adjust the stopper bolts (8) so that their heads
touch the quick-hitch evenly.
3. Start the engine, retract the bucket cylinders to
the minimum length, and then stop the engine.
4. Turn the stopper bolts (8) counterclockwise (2/3
turns) to take their heads 1 mm out and tighten
the lock nuts (7).
Stopper Bolt, Lock Nut: Apply thread-lock
-
ing compound.
