Takeuchi TL150 Workshop Manual

III-30
MACHINE CONFIGURATIONFRAME

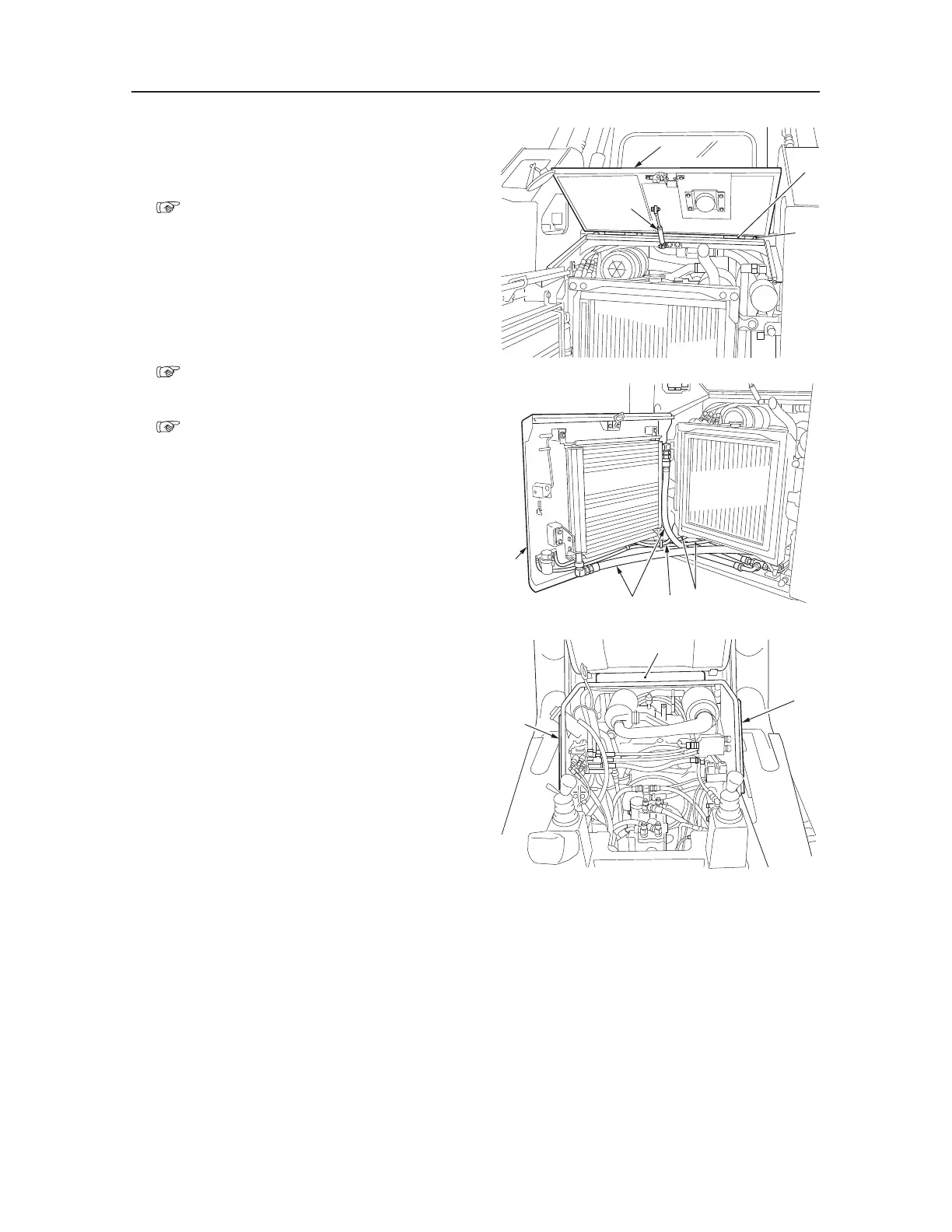

Removing the Covers
1. Disconnect the negative battery cable from the
battery.
2. Tilt up the canopy.
“Tilting up the Canopy”
3. Open the engine hood (1), lifting it up with
cables. Remove the gas spring (2), plate (3) and
hinges (4) to remove the engine hood (1).
4. Open the rear door (5) to remove the oil cooler
hoses (6) and electrical wiring (7).
• Drain the oil from the tank.
“Remove the Hydraulic Tank”
5. Loosen the drain cock to drain out the fuel.
“Removing the Fuel Tank”
6. Disconnect the fuel hoses (8).
7. Lift up the rear door (5) with cables to remove
the pins and remove the rear door (5).
8. Remove the bolts and the center cover (9).
9. Remove the bolts and the side cover L (10).
10. Remove the bolts and the side cover R (11).
Installing the Covers
Follow the same procedure as for removal in the
reverse order
T7C407
1
2
4
3
T7C408
5
6
7
8
T7C409
9
11
10
