IV-109
HYDRAULIC UNITSTRAVEL MOTOR

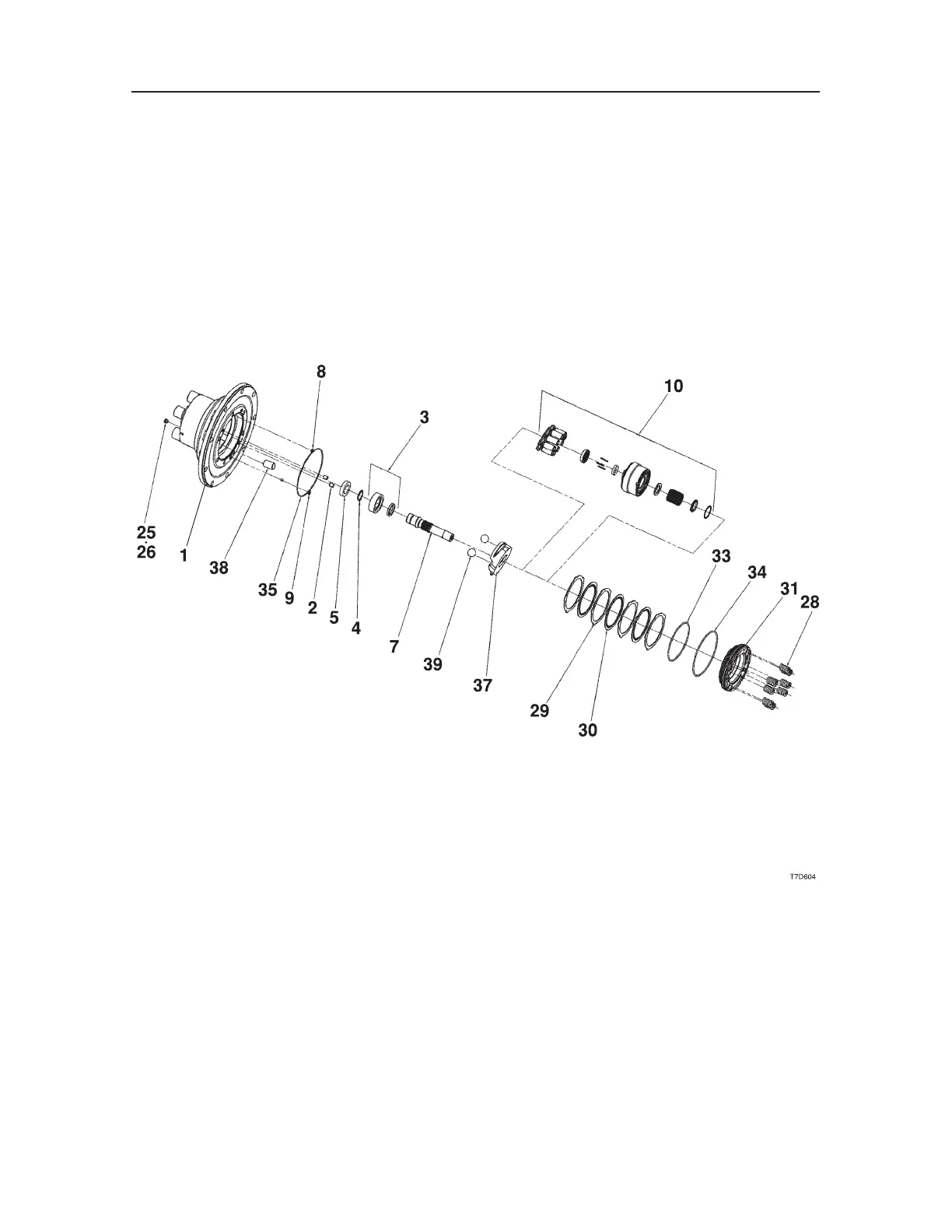

TRAVEL MOTOR (DAIKIN)
CONSTRUCTION
Hydraulic motor 1/2
1. Flange Holder
2. Pin
3. Bearing Assembly
4. Snap Ring
5. Oil Seal
7. Shaft
8. O-ring
9. O-ring
10. Cylinder Block Assembly
25. Plug
26. O-ring
28. Spring
29. Center Disc
30. Friction Disc
31. Brake Piston
33. O-ring
34. O-ring
35. O-ring
37. Swash Plate
38. Piston
39. Ball
