IV-110

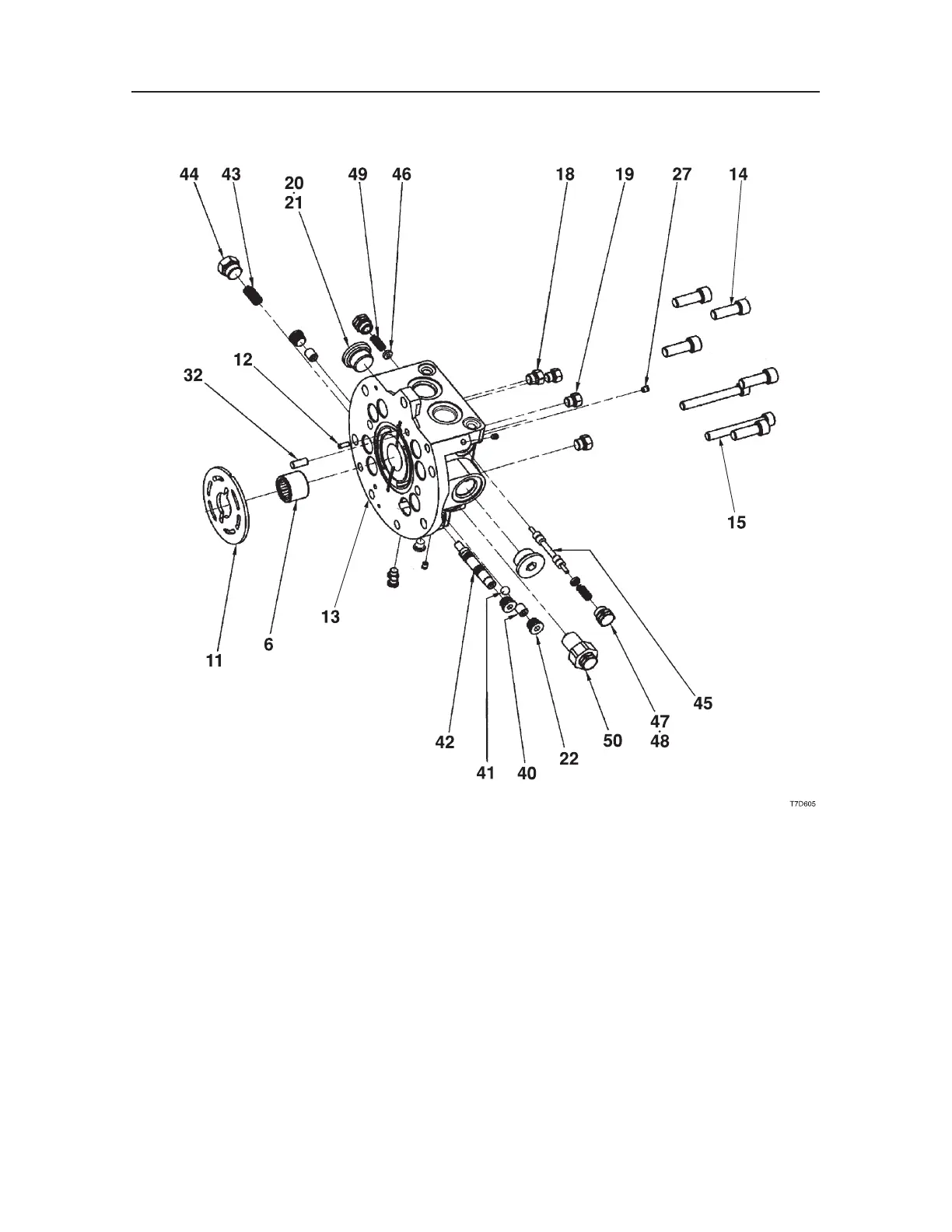

HYDRAULIC UNITSTRAVEL MOTOR
Hydraulic motor 2/2
6. Bearing
11. Valve Plate
12. Pin
13. Valve Body
14. Cap Screw
15. Cap Screw
18. Plug
19. Plug
20. Plug
21. Plug
27. Plug
32. Pin
40. Plug
41. Ball
42. Spool
43. Spring
44. Plug
45. Spool
46. Spring Guide
47. Plug
48. O-ring
49. Spring
50. Relief Valve
