IV-111
HYDRAULIC UNITSTRAVEL MOTOR

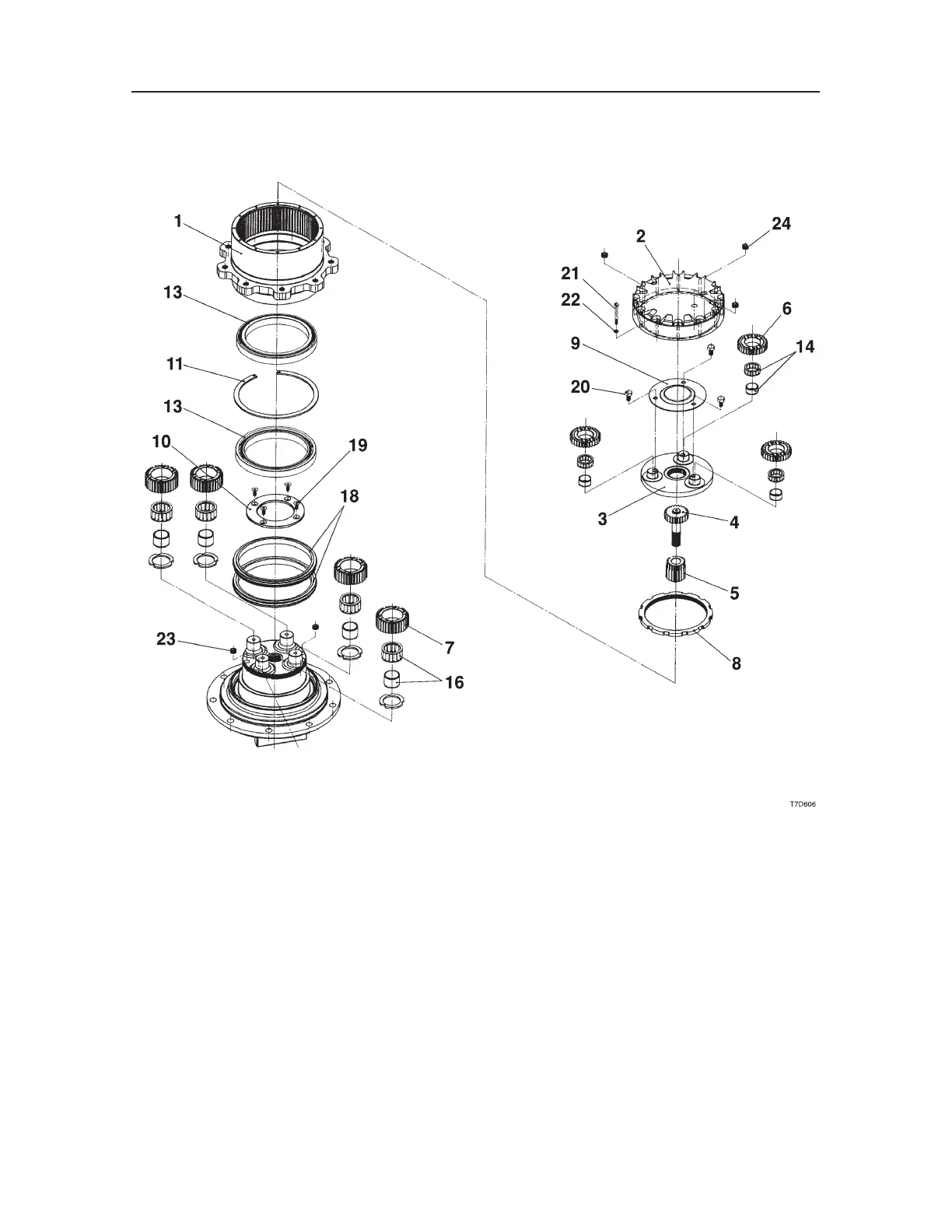

Reduction gears
1. Housing
2. Cover
3. Carrier
4. Sun Gear
5. Sun Gear
6. Planet Gear
7. Planet Gear
8. Ring Nut
9. Thrust Plate
10. Thrust Plate
11. Snap Ring
13. Bearing
14. Needle Bearing
16. Needle Bearing
18. Floating Seal
19. Screw
20. Bolt
21. Bolt
22. Washer
23. Plug
24. Plug
