Takeuchi TL150 Workshop Manual

III-49
MACHINE CONFIGURATIONHYDRAULIC SYSTEM
DISASSEMBLY AND ASSEMBLY

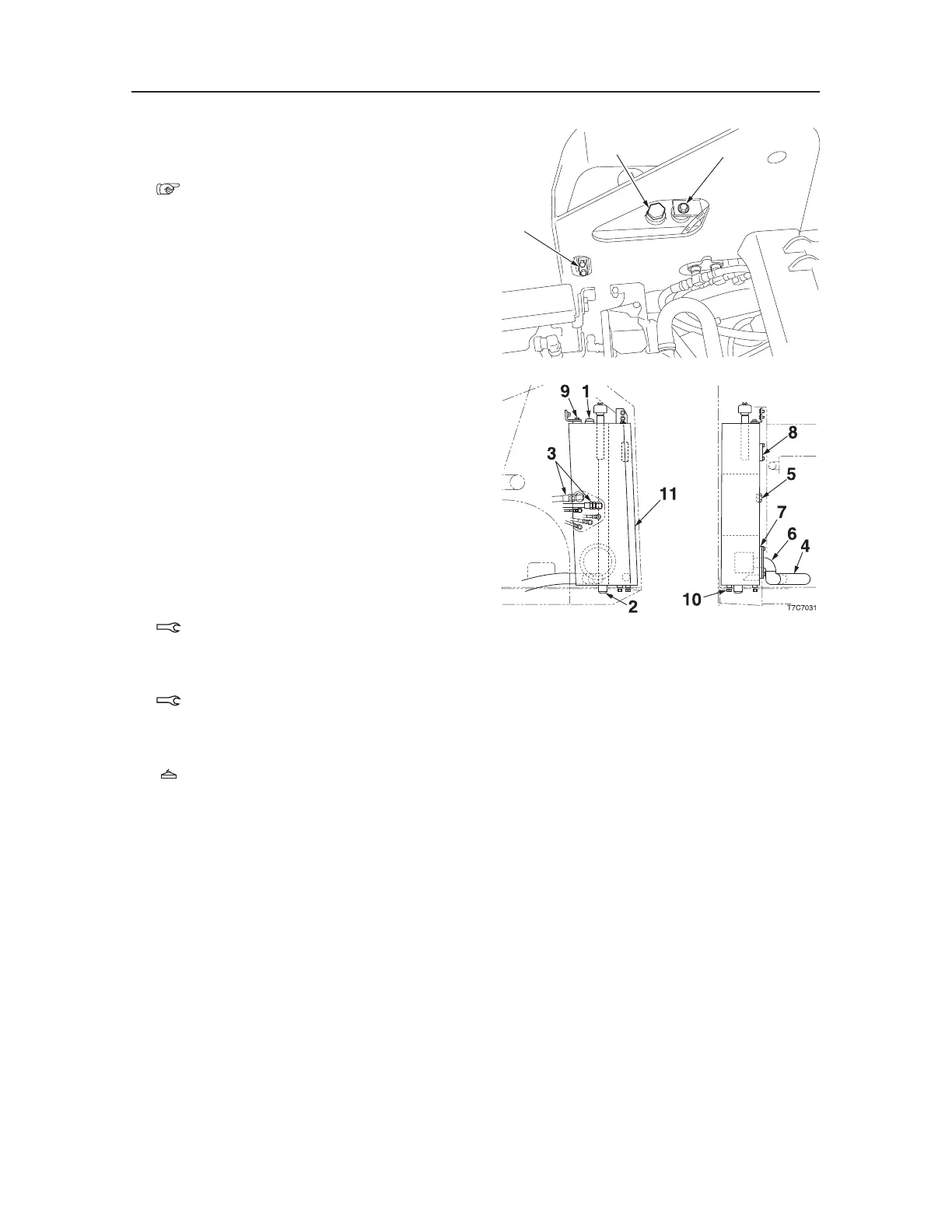

Removing the Hydraulic Tank
1. Remove the radiator.
“Removing the Radiator”
2. Drain the oil from the tank.
a. Remove the plug (1).
b. Loosen the drain plug (2) and drain out the
oil.
• Tank level capacity: 64 L
3. Disconnect the hydraulic hoses (3) from hydrau
-
lic tank.
Next remove the bushings.
• 6 hoses.
4. Disconnect the suction hoses (4) from the hy
-
draulic tank.
5. Remove the plug (5).
6. Remove the bolts, suction pipe (6) and flange
(7).
7. Remove the sight gauge (8).
8. Remove the bolts (9).
Bolt: 47.1 N·m
Apply thread-locking compound.
9. Remove the bolts (10).
Bolt: 47.1 N·m
Apply thread-locking compound.
10. Suspend the tank (11) and remove it.
Tank: 51 kg
Installing the Hydraulic Tank
Follow the same procedure as for removal in the
reverse order.
T7C702
8
1
9
