Takeuchi TL150 - Drive Sprocket

II-15
SPECIFICATIONS
SERVICE STANDARDS

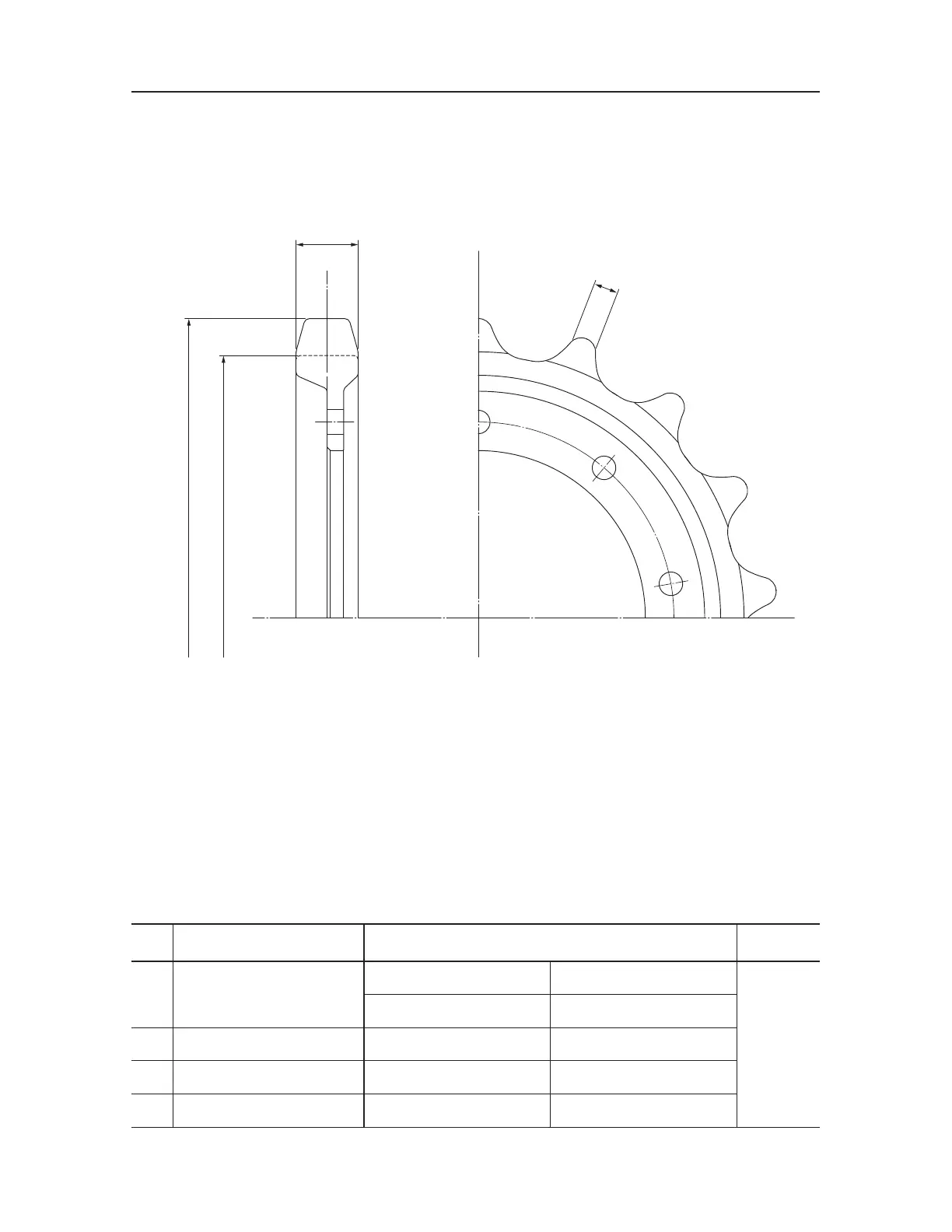

Drive Sprocket
Unit: mm
Code Item Designated Standard
Servicing
Procedure
Basic Dimension Allowable Value
Replace
A Sprocket Teeth Profile Wear 14.4 6.4
B Sprocket Teeth Width 45 41
C Sprocket Outer Diameter
432 424
D
Sprocket Teeth Lower Diameter 378.6 370.6




