Takeuchi TL150 Workshop Manual

III-31
MACHINE CONFIGURATIONFRAME

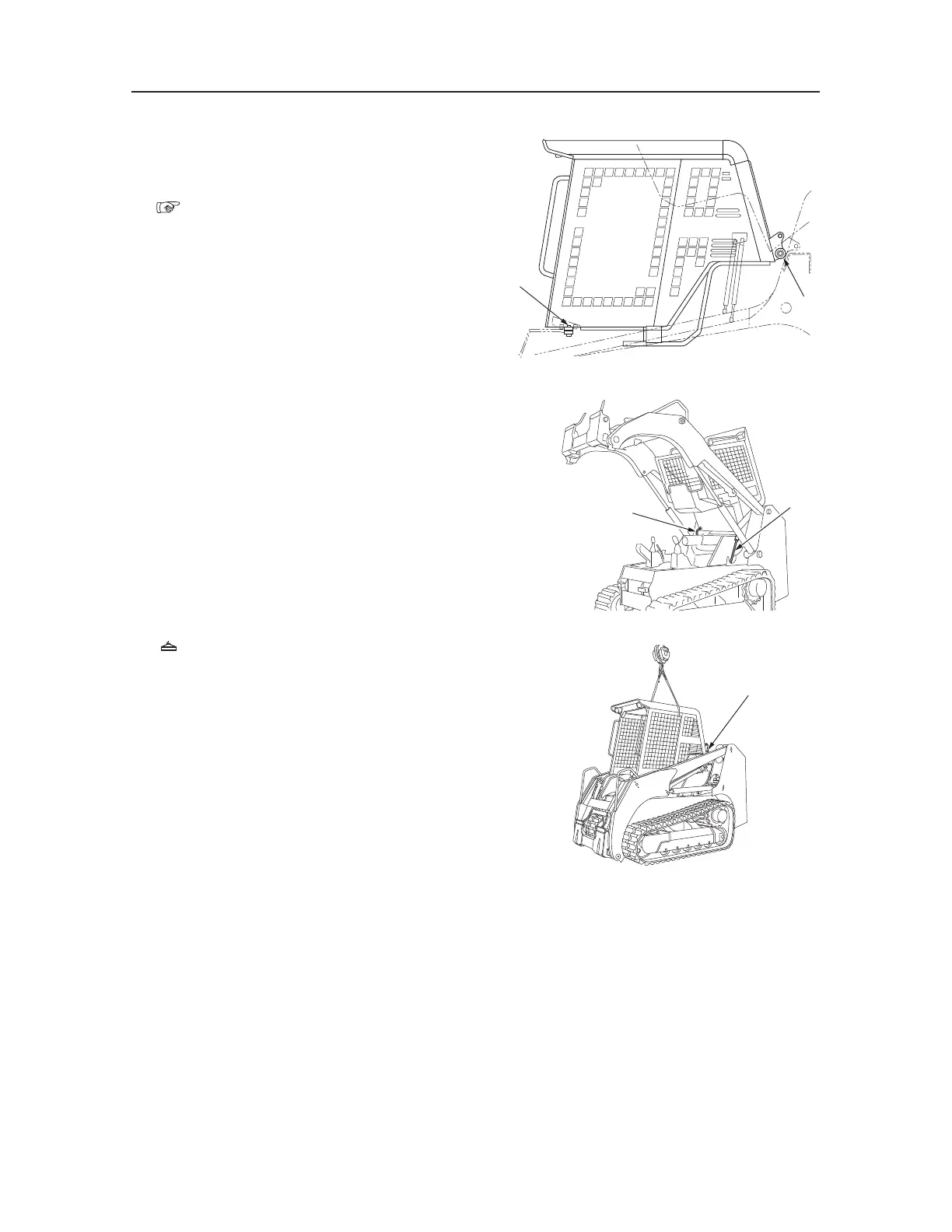

Removing the Canopy.
1. Disconnect the negative battery cable from the
battery.
2. Raise the lift arms.
“Lift Arm Stop”
3. Remove the fixing bolts on the 2 front positions
(A).
4. Suspend the canopy.
• Hook the suspender on the handrail ahead of
the canopy.
5. Disconnect the electric wiring (1) for the cano-
py.
6. Remove the gas springs (2) and installation
pins.
7. Lower the canopy and the lift arms to the
ground.
8. Remove the fixing bolts on the 2 rear positions
(B).
9. Suspend the canopy and remove it.
• Re-hook the suspender on the center of the
canopy to suspend the canopy at level.
Canopy: Approx. 150 kg
10. Remove the cushion rubber between the cano-
py.
Installing the Canopy
Follow the same procedure as for removal in the
reverse order.
T7C410
B
A
T7C411
2
1
T7C412
B
