Takeuchi TL150 Workshop Manual

III-29
MACHINE CONFIGURATIONFRAME
1
2
3
4
5
T7C405
T7C406
9
7
6
8

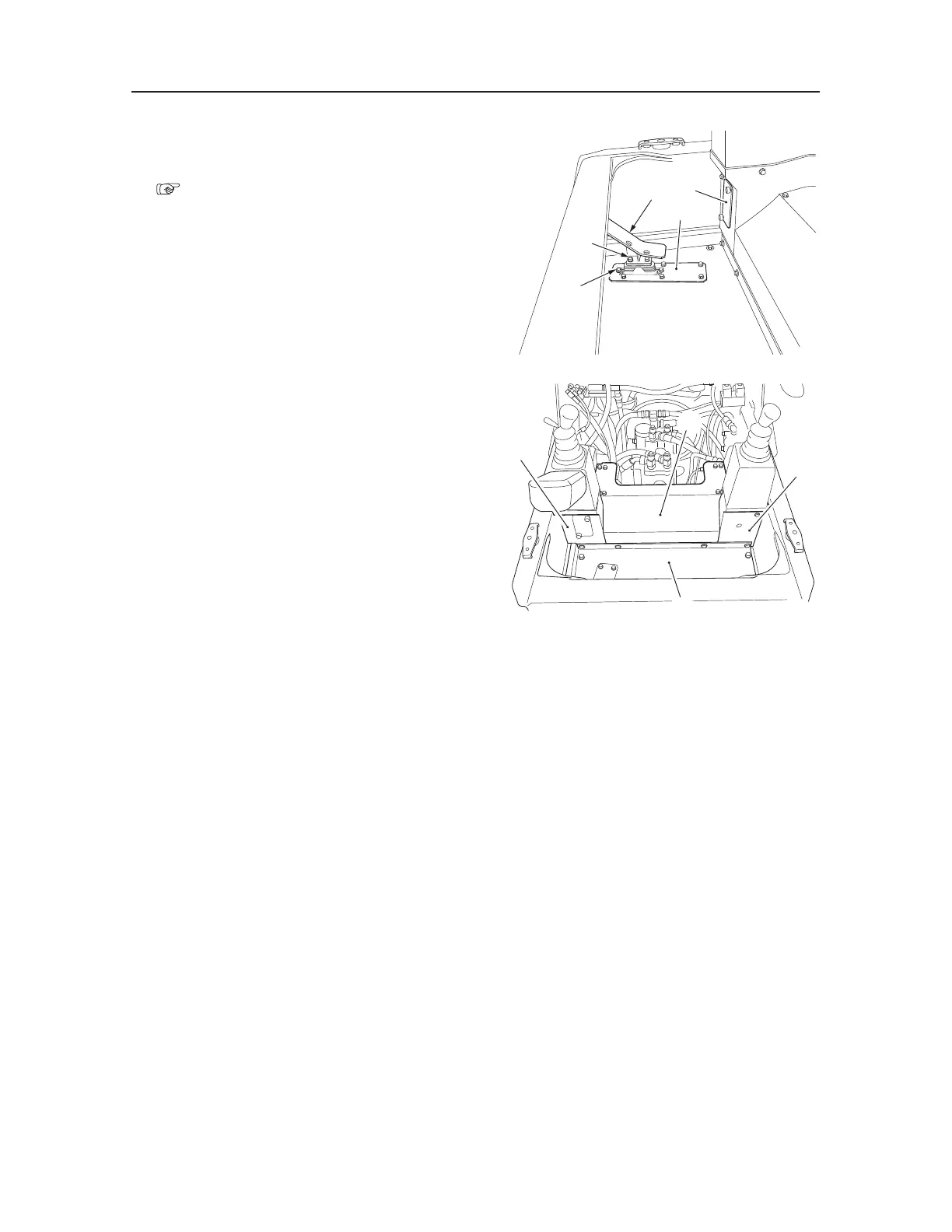

DISASSEMBLY AND ASSEMBLY
Removing the floor Frame
1. Tilt up the Canopy.
“Tilting Up the Canopy”
2. Remove the cover (1).
3. Remove the floor mat.
4. Remove the auxiliary pedal.
a. Remove the screws (2) and the pedal (3).
• Apply thread-locking compound.
b. Remove the bolts (4) and pilot valve.
c. Remove the bolts and plate (5).
5. Remove the bolts and floor plate (6).
6. Remove the bolts and cover C (7).
7. Remove the bolts and cover R (8).
8. Remove the bolts and cover L (9).
Installing the Floor Frame
Follow the procedure used for removal in reverse
order.

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
