III-44
MACHINE CONFIGURATION
ATTACHMENTS

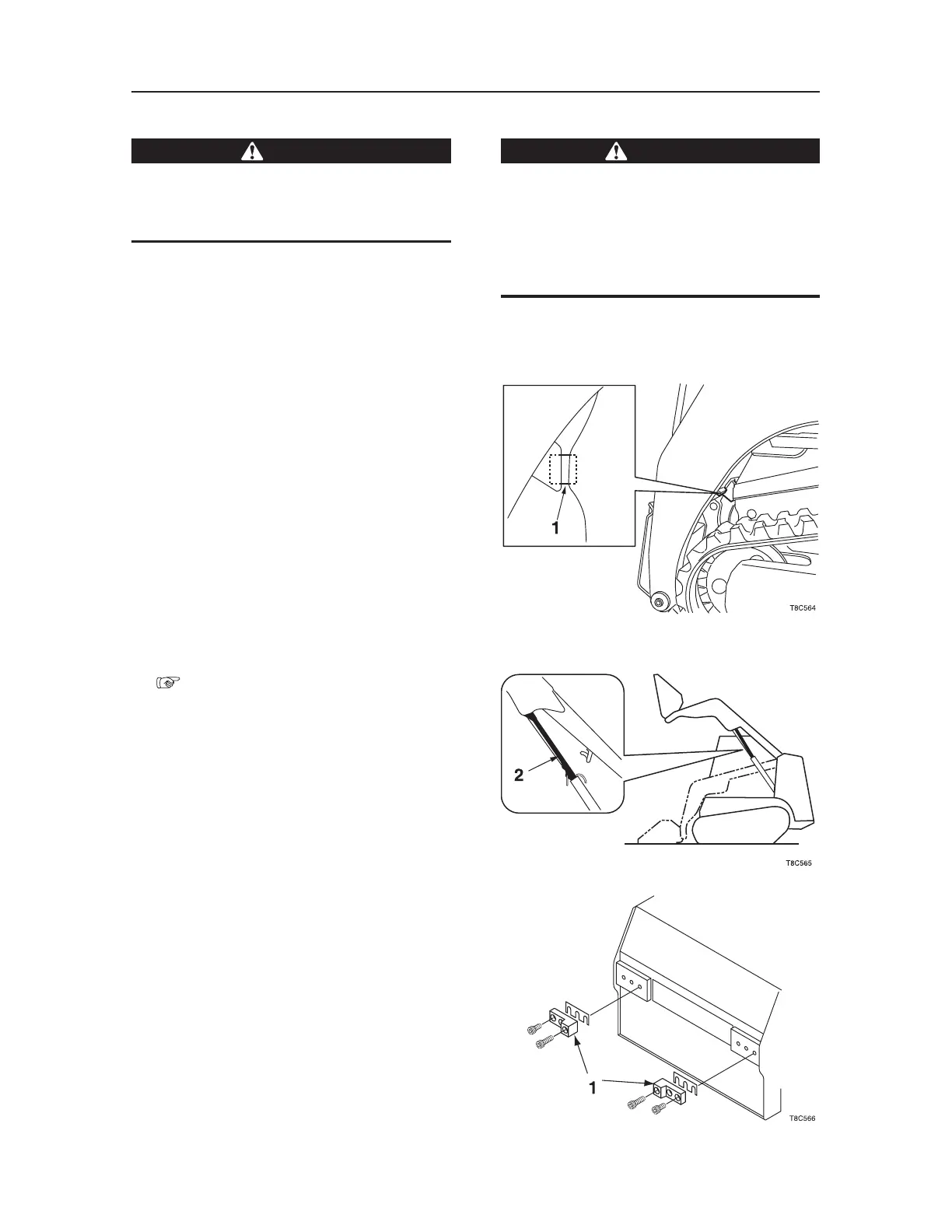

Adjusting the Arm Stopper
DANGER
When the lift arm is raised, never position your-
self under it without making sure that the lift
arm is securely supported by the lift arm stop-
per.
The lift arm must be adjusted so that the frame
presses against the right and left stoppers (1) at the
same time when it is lowered.
1. Raise the lift arm, and securely lock it with the
lift arm stopper (2).
“III-28~28-2”
2. Remove the Allen bolts and then the stoppers
(1).
WARNING
• Park the machine on a flat and solid ground
for work.
• Be sure to be seated on the cab when oper
-
ating the machine, including the starting and
stopping the engine.
• Set the engine speed to low when operating
the control lever.
To Next Page
