HYDRAULIC UNITSCYLINDERS

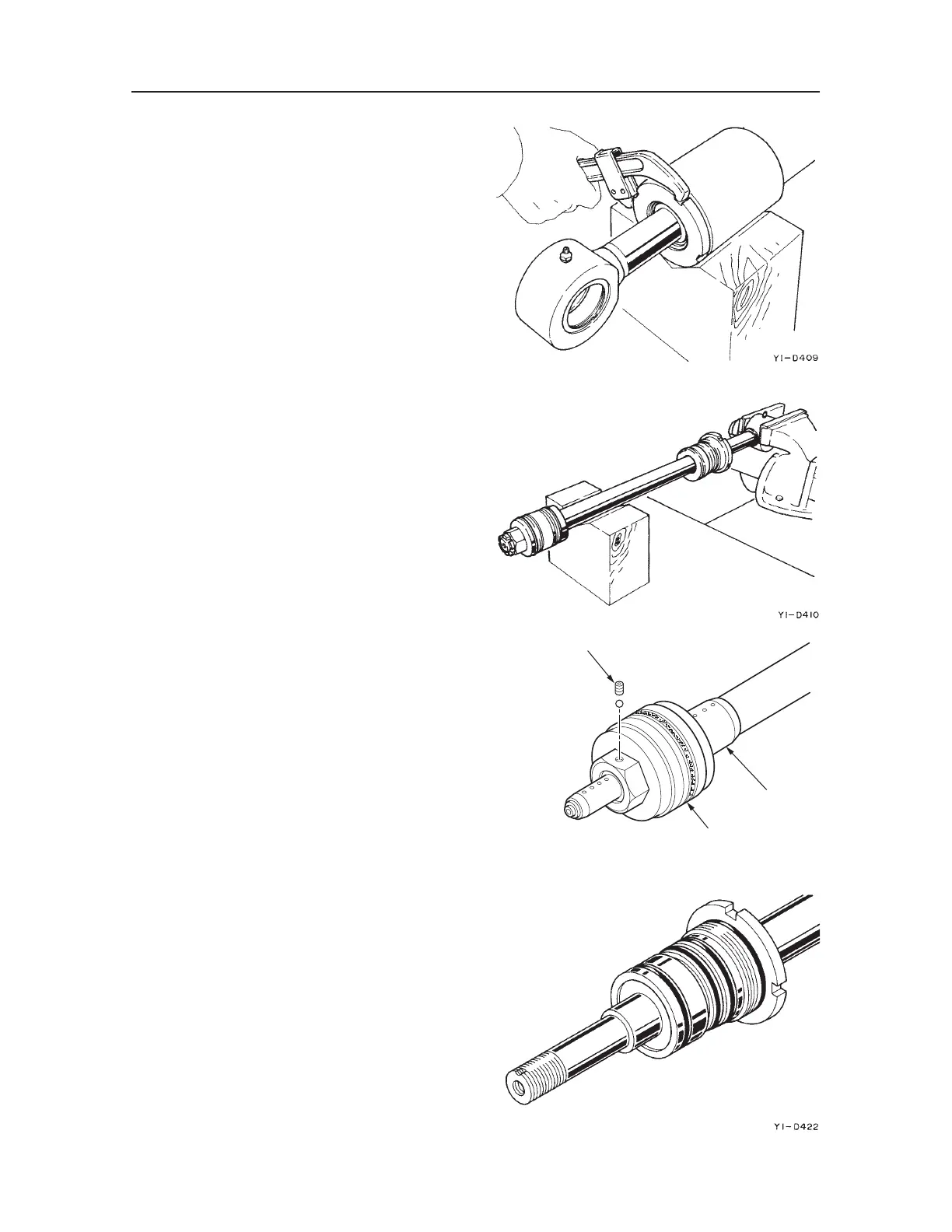

4. Loosen the rod cover.
• The piston rod should be pulled out approxi
-
mately 200 mm beforehand.
• Measures should be taken to prevent the pis
-
ton rod from being hit.
5. Take the piston rod assembly out of the tube.
• Pull it out straight to prevent the sliding sur-
face from being scratched.
Piston Rod Assembly
1. Fasten the piston rod assembly securely in a
level position.
2. Remove the piston.
a. Take out the set screw (1) and remove the
ball.
• The set screw is staked at 2 place with a
punch, so grind off the staked portions us-
ing a hand drill.
b. Remove the piston assembly (2) and remove
the cushion assembly (3).
3. Remove the rod cover assembly.
E5D408
1
3
2
