Takeuchi TL150 - Cab Type

II-5
SPECIFICATIONS
Cab Type
Unit: mm
Standard Bucket
Steel Tracks
A 3985
B 3135
C 1555
D 2350
E 355
F 1860
G 450
H 1570
J 985
K 1960
L 580
M 31°
Machine Dimensions
L
M
D
J
H
K
C
F
G
A
E
B
T7K001A
D
H
K
C
F
A
E
B
J
G
T7K002A
Unit: mm
Standard Bucket
Steel Tracks
A 4255
B 3210
C 2440
D 795
E 1005
F 3865
G 2435
H 1560
J 1755
K 31°

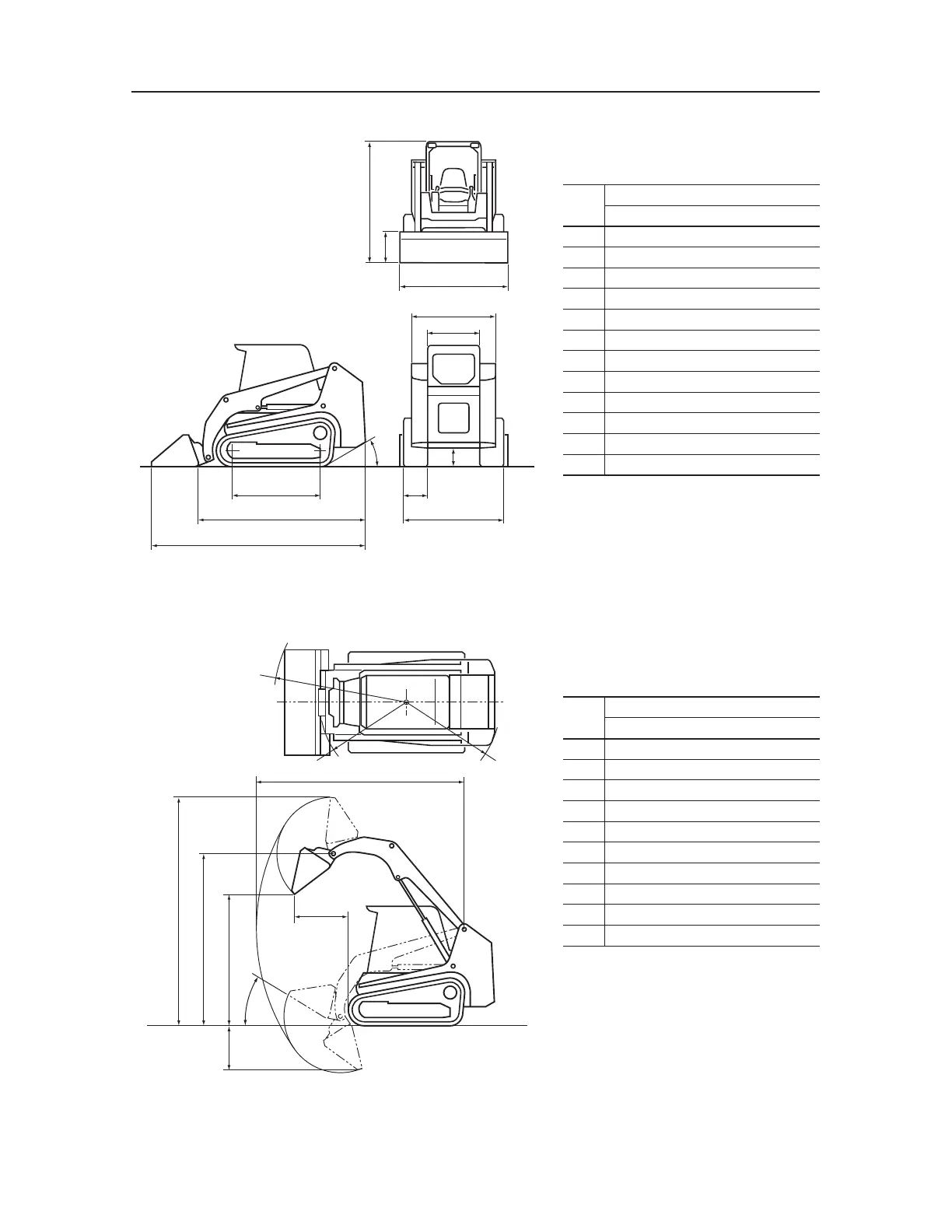

Operating Range
SPECIFICATION DIAGRAMS
