Takeuchi TL150 Workshop Manual

IV-56
HYDRAULIC UNITSCONTROL VALVE (HIGH FLOW)
1. Spring
2. Plug
3. Valve Seat
4. Spring
5. Solenoid
6. Plug
7. O-ring
8. O-ring
9. O-ring
10. O-ring

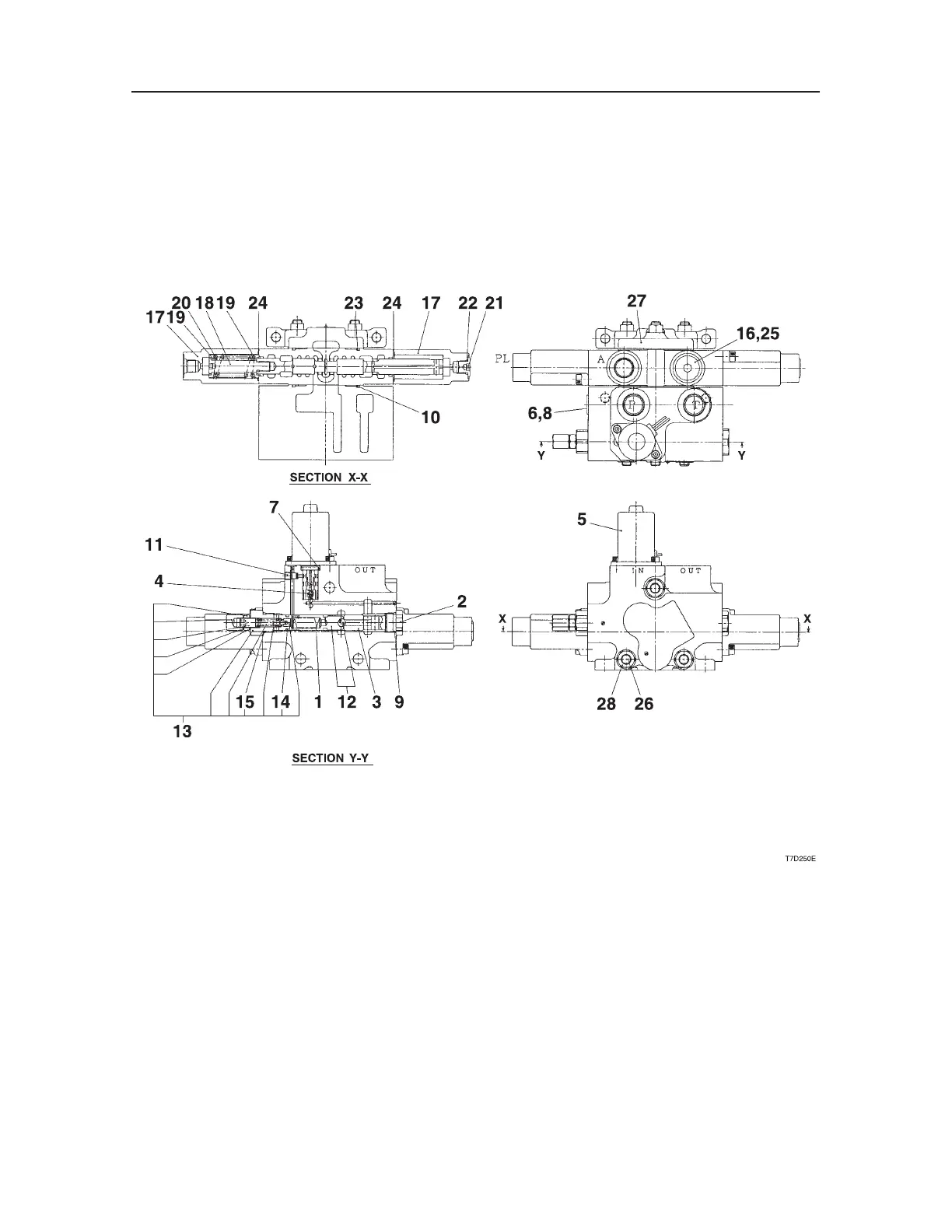

CONTROL VALVE (HIGH FLOW)
CONSTRUCTION
11. Plug
12. Plunger
13. Relief Valve
14. O-ring
15. O-ring
16. Plug
17. Cover
18. Spool End
19. Holder
20. Spring
21. Plug
22. O-ring
23. O-ring
24. O-ring
25. O-ring
26. Tie Rod
27. Inlet Housing
28. Nut
