III-11
MACHINE CONFIGURATIONDRIVE SYSTEM

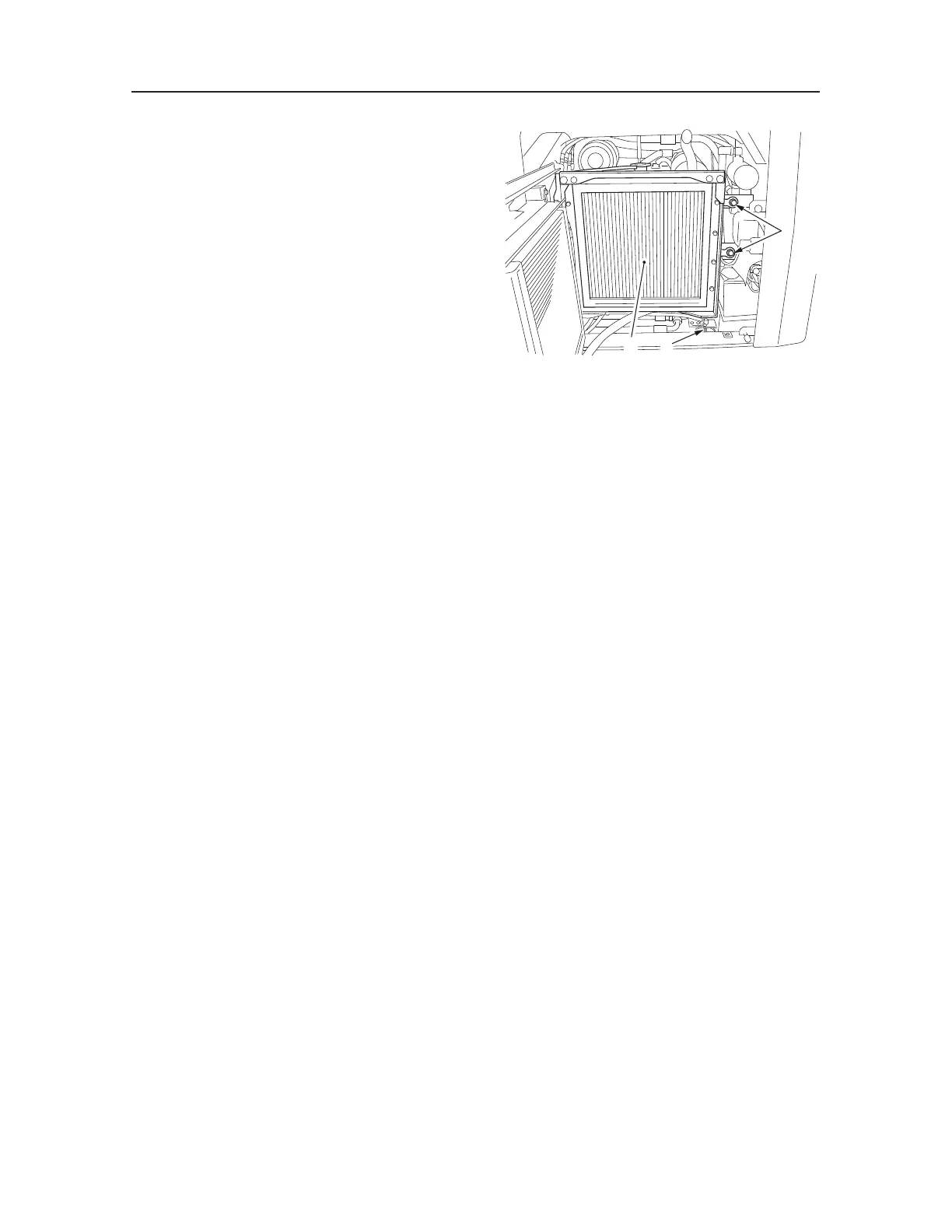

Removing the Radiator
1. Remove the radiator cap and loosen the drain
cock (1) to drain the engine coolant.
Coolant volume: 15 L
2. Remove the bolts (2) and open the radiator (3).
3. Disconnect the radiator hoses [upper] (4) and
[lower] (5) and hoses (6) from the radiator.
4. Remove the R-pins and pull out the pins (7).
5. Remove the radiator (3).
Installing the Radiator
Follow the same procedure as for removal in the
reverse order.
The radiator should be mounted at right angles to
the main body frame and parallel to the cooling
fan.
T7C109
3
1
2
