Takeuchi TL150 Workshop Manual

IV-85
HYDRAULIC UNITS
SELF-LEVEL VALVE
1. Valve Assembly
2. Ring
3. Cover
4. O-ring
5. O-ring
6. O-ring
7. O-ring
8. O-ring
9. O-ring

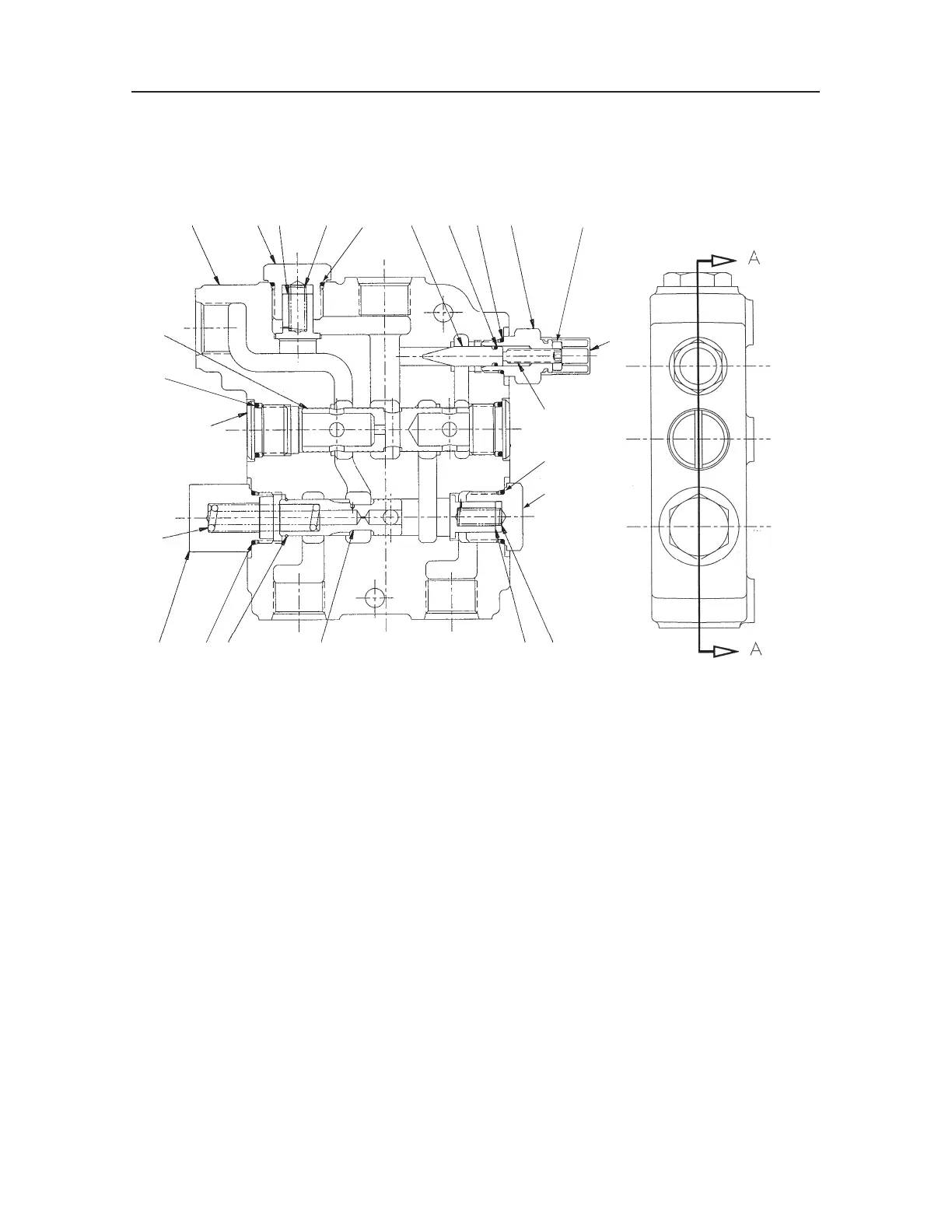

SELF-LEVEL VALVE
CONSTRUCTION
T7D950E
45
6
7
216
17
24
23 21
22
20
12 13 14
19
25 1011
9
3
15
8
18
SECTION “A-A”
10. Spring
11. Plunger
12. Pin
13. Cap
14. Nut
15. Set Screw
16. Plug
17. Plug
18. Plug
19. Spring
20. Plunger
21. Plug
22. Spring
23. Housing
24. Spool
25. Spool

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
