Takeuchi TL150 Workshop Manual

III-14
MACHINE CONFIGURATION
DRIVE SYSTEM
Removing the Fuel Tank
1. Remove the floor frame.
“Removing the Floor Frame”
2. Remove the lever stands.
“Removing the Lever Stands”
3. Remove the hose cramp (1).
4. Remove the hydraulic pump.
“Removing the Hydraulic Pump”
5. Remove the suction pipe (2).
6. Loosen the drain cock (3) to drain out the fuel.
• Fuel tank capacity: 108 L
7. Disconnect the fuel sender connector (4).
8. Disconnect the fuel hoses (5) and the hose (6).
9. Loosen the bolts and nuts and remove the bands
(7).
10. Remove the fuel tank (8).
Fuel tank: 14 kg
Installing the Fuel Tank
Follow the same procedure as for removal in the
reverse order.

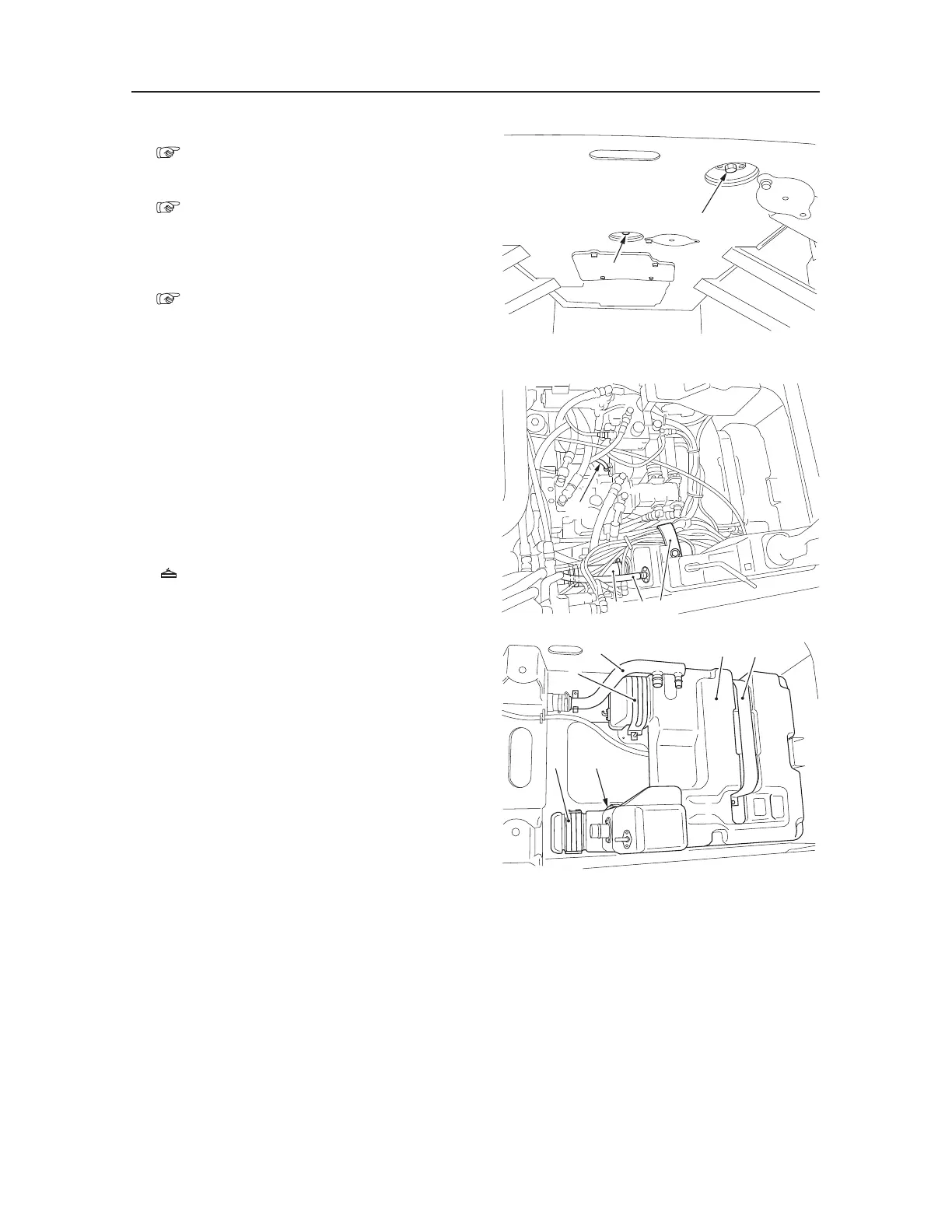

T7C113
3
5
T7C114
5
651
T7C115
7
4
7
2
8
7
