Takeuchi TL150 Workshop Manual

II-16
SPECIFICATIONSSERVICE STANDARDS

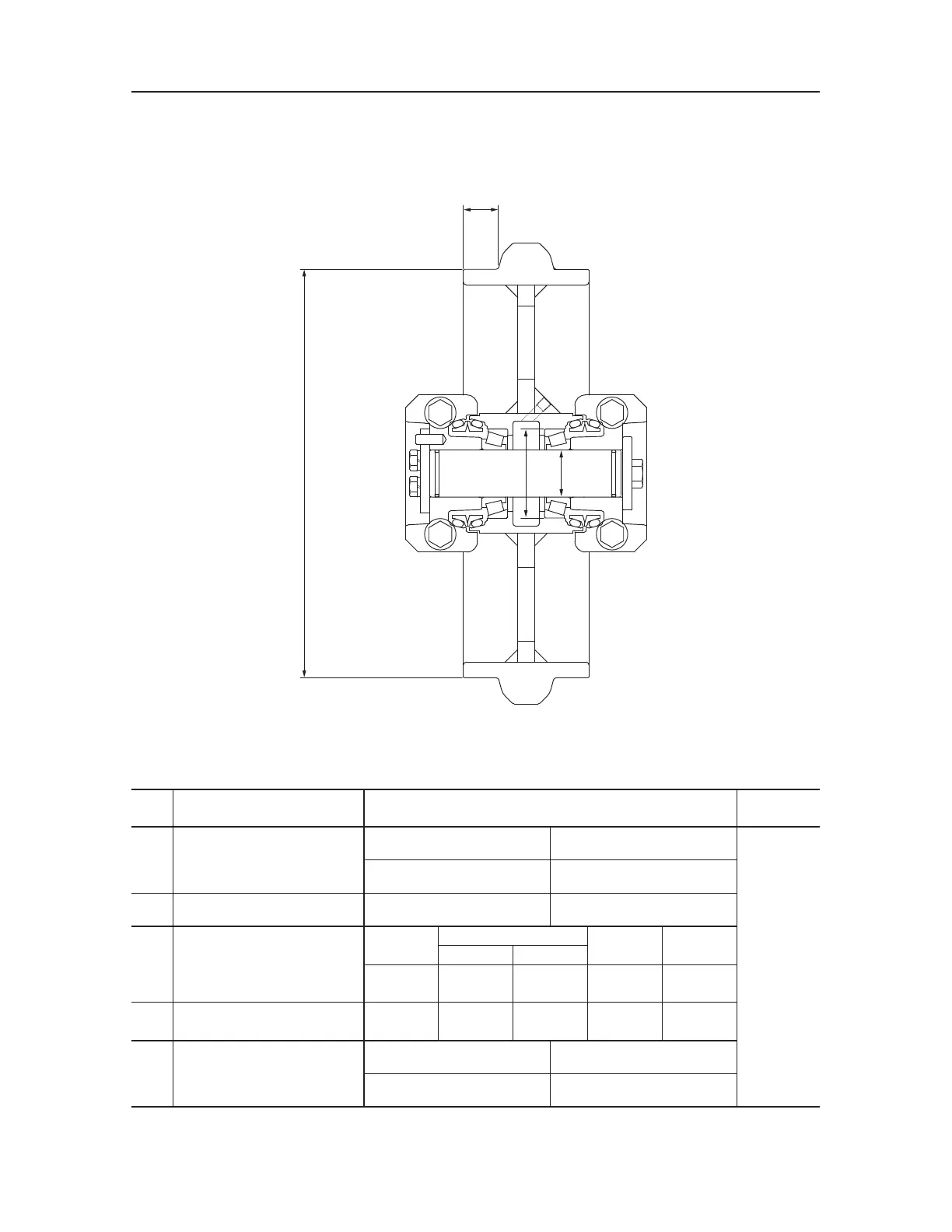

Idler
Unit: mm
Code Item Designated Standard
Servicing
Procedure
Basic Dimension Allowable Value
Replace
A Outer Diameter Tread 390 380
B Width of Tread 33.4 38.4
Basic
Dimension
Allowable Tolerance
Standard Allowable
Shaft Hole
C
Shaft and Bearing Bore
Diameter Clearance
45
0
-0.011
0
-0.012
0.011

0.012

±
D
Idler and Bearing Outer
Diameter Interference
85
0
-0.018
0
-0.035
0.018

0.035

±
Standard Value Allowable Value
Shaft End Play 0.9 1.4
*: Maximum clearance **: Maximum interference





Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
