Takeuchi TL150 Workshop Manual

IV-46
HYDRAULIC UNITSCONTROL VALVE

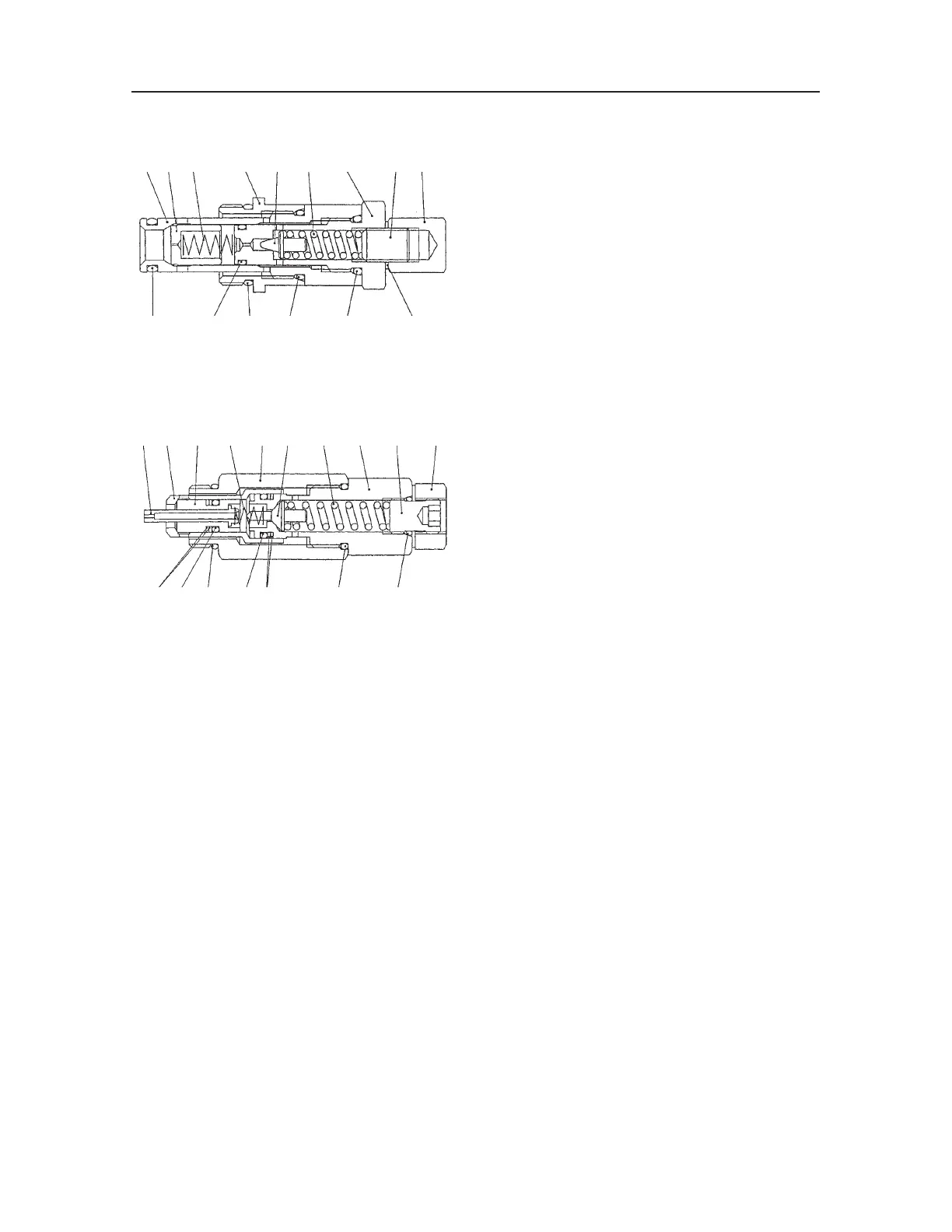

Main Relief Valve
Port Relief Valve
1. Housing
2. Plug
3. Sleeve
4. Main Poppet
5. O-ring
6. Needle Valve
7. Set Screw
8. Gasket
T7D204
9
7
2
10
6
1
11
4
3
14
15
5
12
13
8
T7D205
10
92
7
6
1
8
4
3
5
17
15
11
14
16
12
13
9. Lock Nut
10. Spring
11. Spring
12. O-ring
13. O-ring
14. O-ring
15. O-ring
1. Housing
2. Plug
3. Poppet
4. Main Poppet
5. Piston
6. Needle Valve
7. Spring
8. Spring
9. Set Screw
10. Lock Nut
11. O-ring
12. O-ring
13. O-ring
14. O-ring
15. O-ring
16. Backup Ring
17. Backup Ring
