III-54
MACHINE CONFIGURATIONAIR CONDITIONER SYSTEM
AIR CONDITIONER SYSTEM

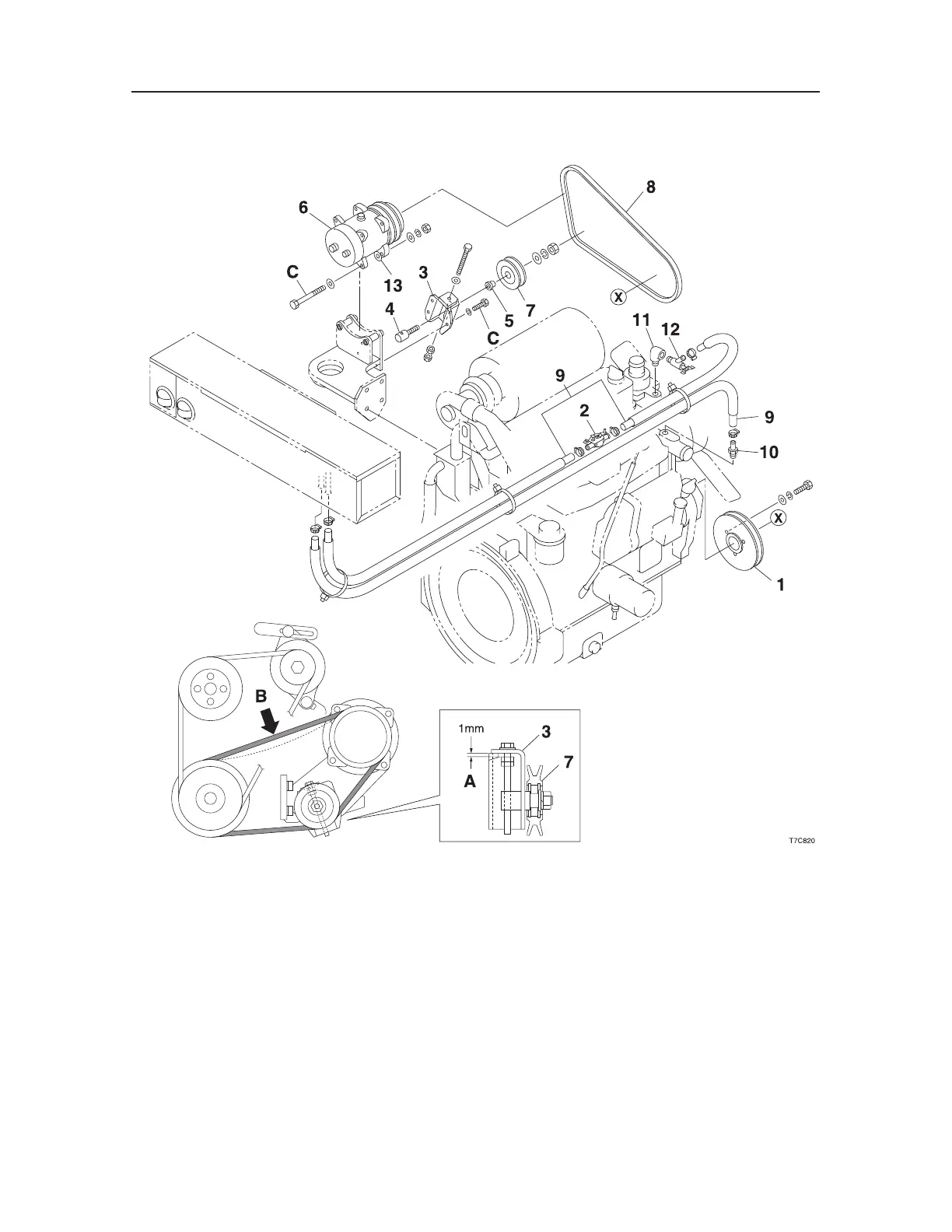

Compressor Assembly (1/4)
1. Pulley
2. Valve
3. Bracket
4. Shaft
5. Collar
6. Compressor
7. Pulley
A: Allow a clearance.
B: Press on the center of the belt with a finger. The
belt’s tension is normal if it bends about 8 mm when
pressed with a force of about 98N.
C: Apply thread-locking compound.
8. Belt
9. Hose
10. Adapter
11. Elbow
12. Valve
13. Shim
