Takeuchi TL150 Workshop Manual

IV-60
HYDRAULIC UNITSCONTROL VALVE (HIGH FLOW)

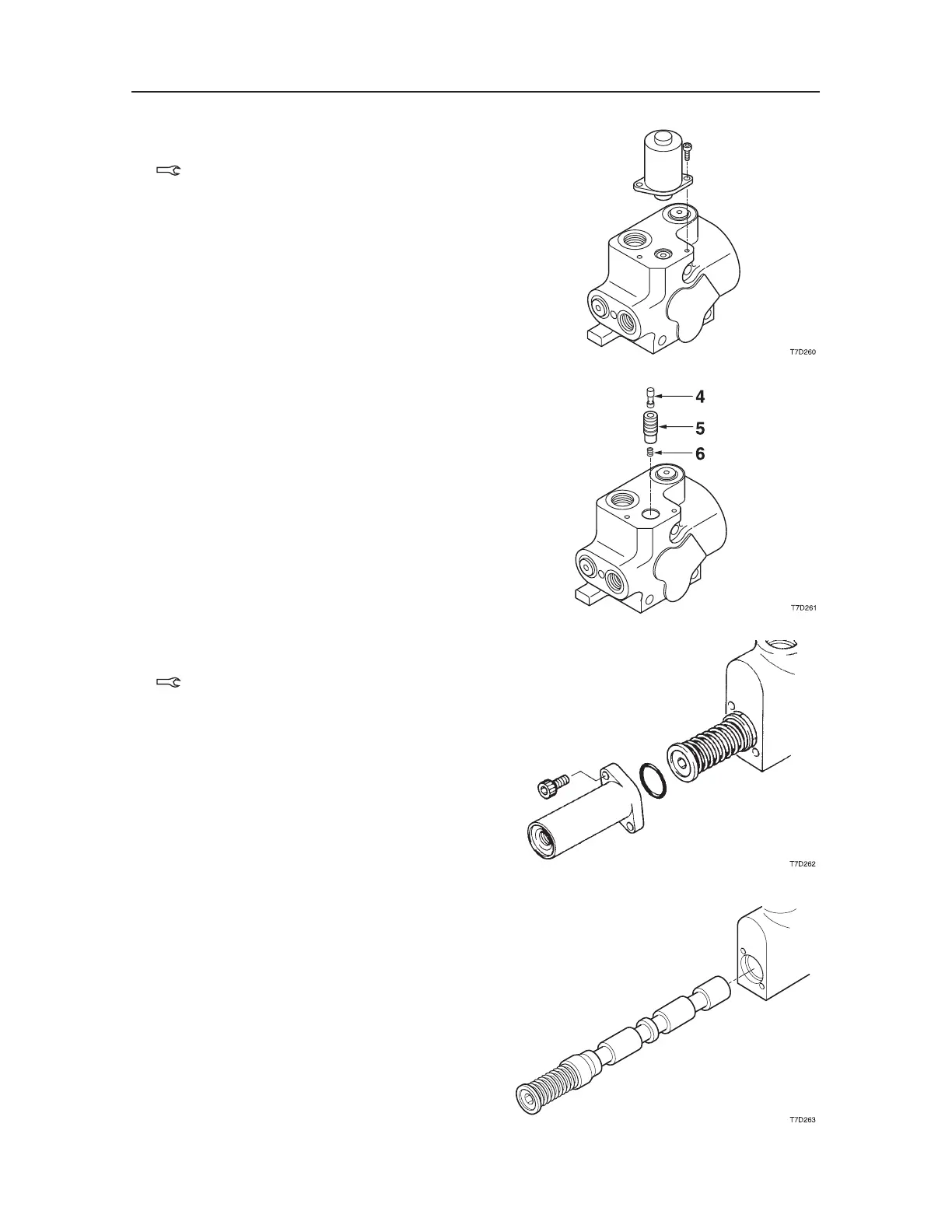

6. Remove the cap screws and the solenoid valve,
then remove the O-ring from the solenoid
valve.
Cap Screw: 3.92 ±0.98 N·m
7. Remove the spool (4), the sleeve (5) and the
spring (6) from the body.
• To remove the sleeve, turn the body upside
down and lightly tap it.
8. Remove the cap screw and remove the cover,
then remove the O-ring from the cover.
Cap screw: 3.92 ±0.98 N·m
9. Remove the spool from the section.

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
