Takeuchi TL150 Workshop Manual

IV-82
HYDRAULIC UNITSPILOT VALVE
OPERATION
“IV-72”
DISASSEMBLY AND ASSEMBLY
General Cautions
“IV-73”
The following describes the disassembly procedure.
For assembly, refer to the construction diagram and
follow the disassembly procedure in the reverse or-
der.

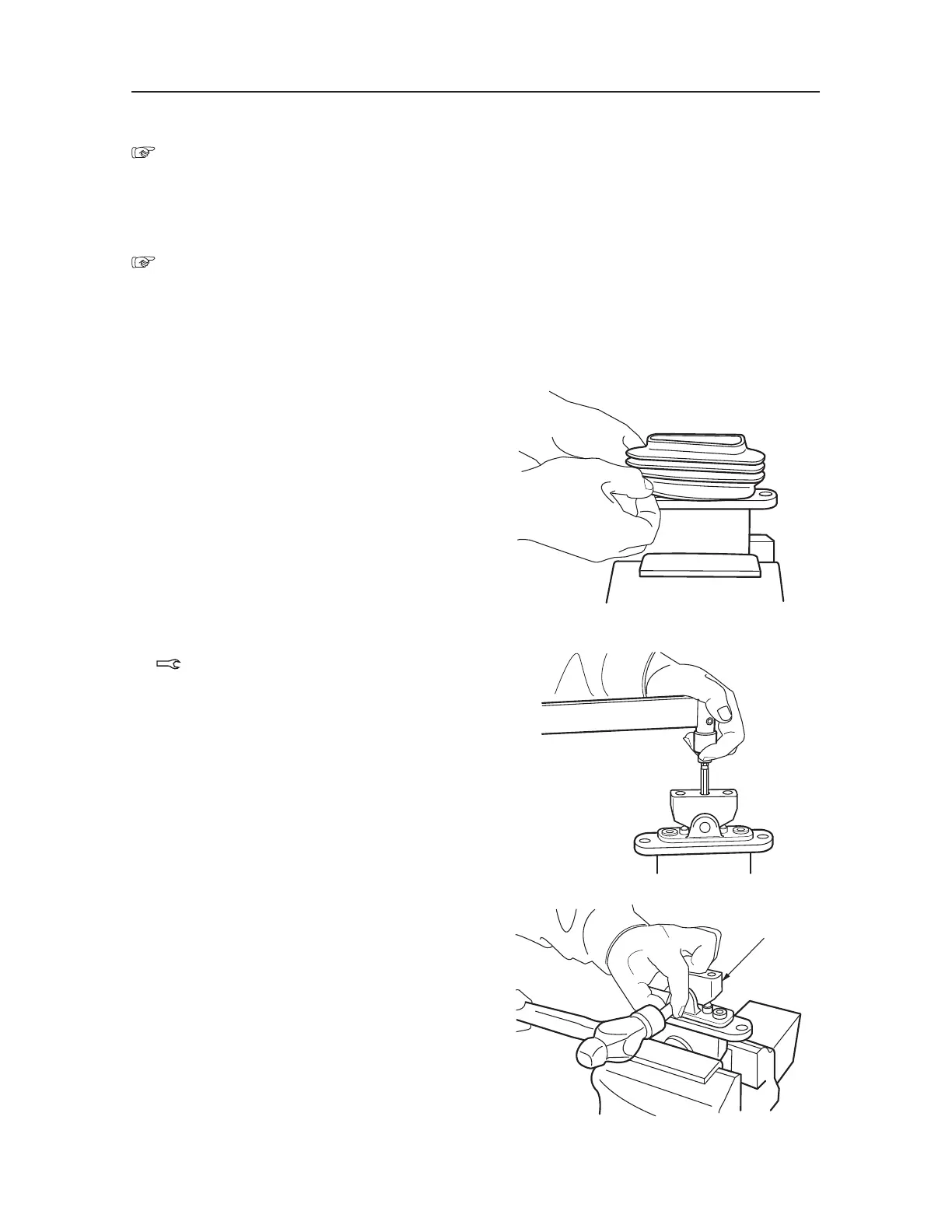

Disassembly
1. Remove the boot from the cover.
• Use a copper or iron sheet to fasten the valve
to the vice.
• Apply grease to the cam and push rods.
2. Remove the set screw.
Set screw: 6.9 N·m
• Apply Loctite #241 to the set screw.
3. Remove the cam pin, then remove the cam (1).




